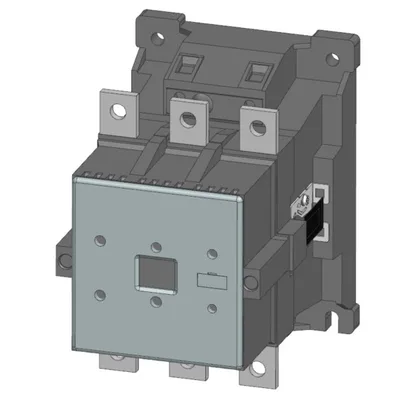

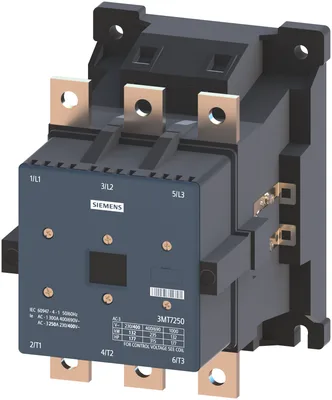

Siemens 3MT7250-7AA00-0AC2

3P Power Contactor AC3:250A AC 24V 50/60 Hz Main circuit: Screw Auxiliary circuit: Screw

SiemensMFR # 3MT7250-7AA00-0AC2SKU # YLS2NGED5ZOR6OF

product brand nameSINOVA

product designationPower contactor

size of contactor7

at AC in hot operating state101.4 W

at AC in hot operating state per pole33.8 W

degree of pollution3

Have questions?Chat on WhatsApp

About This Product

3P Power Contactor AC3:250A AC 24V 50/60 Hz Main circuit: Screw Auxiliary circuit: Screw

Siemens 3MT7250-7AA00-0AC2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSINOVA

product designationPower contactor

General technical data

size of contactor7

at AC in hot operating state101.4 W

at AC in hot operating state per pole33.8 W

of main circuit with degree of pollution 3 rated value1 000 V

degree of pollution3

of main circuit rated value8 kV

on the frontIP00

of the terminalIP00

of contactor typical3

electrical endurance (operating cycles)600 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)11/07/2022

Net Weight6.8 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-5 ... +55 °C

during storage-25 ... +70 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

operating voltage at AC-3 rated value maximum1 000 V

at AC-1 at 400 V at ambient temperature 40 °C rated value300 A

— at 400 V rated value250 A

— at 400 V rated value132 kW

— at 690 V rated value235 kW

at AC3 000 1/h

at AC-1 maximum800 1/h

at AC-3 maximum700 1/h

Control circuit/ Control

type of voltageAC

type of voltage of the control supply voltageAC

at 50 Hz rated value24 V

at 60 Hz rated value24 V

1 rated value50 Hz

2 rated value60 Hz

at 50 Hz0.85

at 60 Hz0.85 ... 1.1

at 50 Hz1 780 V·A

at 60 Hz1 780 V·A

at 50 Hz0.32

at 60 Hz0.32

at 50 Hz122 V·A

at 60 Hz122 V·A

at 50 Hz0.23

at 60 Hz0.23

closing delay at AC25 ... 40 ms

opening delay at AC10 ... 30 ms

Auxiliary circuit

attachable4

Short-circuit protection

— with type of coordination 1 requiredfuse gG: 500 A

— with type of coordination 2 requiredFuse gG: 400 A

mounting position22.5° Inclination forward and backward & 90° to right / 90° to left, in relation to normal vertical mounting plane i.e. coil terminals always on top side

fastening methodscrew fixing

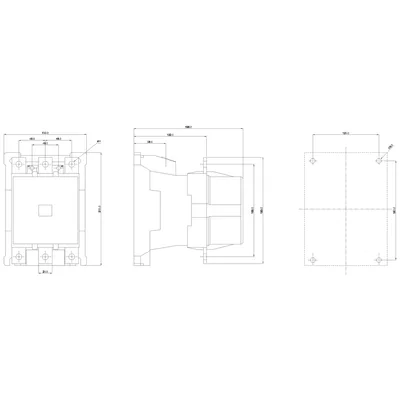

height205 mm

width150 mm

depth198 mm

required spacing for grounded parts at the side10 mm

Connections/ Terminals

for main current circuitConnection bar

solid or stranded2x (70 ... 240 mm²)

finely stranded with core end processing2x (50 ... 240 mm²)

of the auxiliary and control contactsM3.5 (Control)

Safety related data

mirror contact according to IEC 60947-4-1No

positively driven operation according to IEC 60947-5-1No

Electrical Safety

touch protection on the front according to IEC 60529IP00

Product information

EAN4047624439737

Product familyOrdering Data Overview

Life cycle statusActive

Commodity code85364900

Delivery and logistics

Country of originIndia

Standard delivery time30 Day/Days

ReturnableYes

Net weight6.8 Kg

Packaging dimensions (L x W x H)260 x 250 x 187 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 07-11-22

WEEE category5

REACH informationReach Information

Siemens catalog

Product groupX0F9

Catalog IDEP-M3

Group codeP335

Product classRestricted, and/or can only be reused over the medium-term
