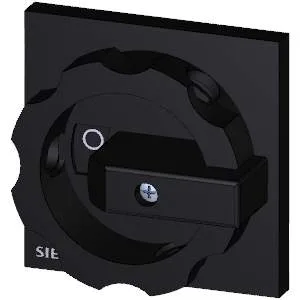

Siemens 3LD9224-1D
rotary operating mechanism, actuating lever black, for center-hole Front mounting, for 25 A and 32 A, Accessory for main and emergency switching-off switch 3LD2
product brand nameSENTRON
product designationRotary operators
degree of protection NEMA rating1, 3R, 4X, 12
suitability for use switch disconnectorYes
suitability for use circuit breakerNo
suitability for use EMERGENCY OFF switchNo
About This Product
rotary operating mechanism, actuating lever black, for center-hole Front mounting, for 25 A and 32 A, Accessory for main and emergency switching-off switch 3LD2
Siemens 3LD9224-1D
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationRotary operators
design of the productaccessories for 3LD2 main and EMERGENCY-OFF switches
degree of protection NEMA rating1, 3R, 4X, 12
suitability for use switch disconnectorYes
suitability for use circuit breakerNo
suitability for use EMERGENCY OFF switchNo
colorblack
of the actuating elementblack
product feature can be locked in ON positionNo
Product component with axisNo
product component restart inhibit function blockNo
product component padlock locking mechanismNo
product component key lockNo
product feature can be locked into OFF positionYes
number of bracket locks maximum3
hasp thickness of the bracket locks4 ... 8 mm
Net Weight78 g
Accessories 25
Genuine accessories that can be used with the Siemens 3LD9224-1D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 3LD2044-0TK51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2248-0TK51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2254-1TL51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2254-0TK51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2244-1TL51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2244-0TK51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2154-2EP51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2154-1TP51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2154-1TL51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2154-0TK51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2150-0TK11-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2144-1TL51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2144-0TK51-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2254-1TL51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2254-0TK51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2248-0TK51-0AD7 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2054-2EP51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2054-1TP51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2054-1TL51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2054-0TK51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2050-1TL11 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2050-0TK11 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2044-1TL51 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2248-0TK51-1AD7 | Uyumlu ürün · Main and EMERGENCY OFF switch | |
| 3LD2250-0TK11-1AA0 | Uyumlu ürün · Main and EMERGENCY OFF switch |
