How can I get a price quote for Siemens 3LD2265-8VQ51-0AF6?

You can request a fast quote for Siemens 3LD2265-8VQ51-0AF6 from Yılsa Engineering. Reference part number CEY-8EF3B02FC610. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3LD2265-8VQ51-0AF6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3LD2265-8VQ51-0AF6 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3LD2265-8VQ51-0AF6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

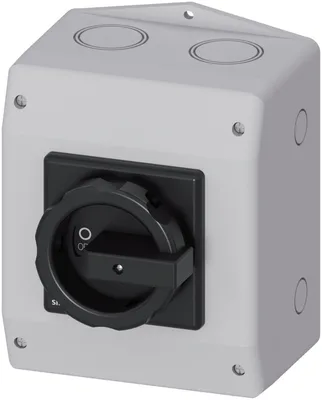

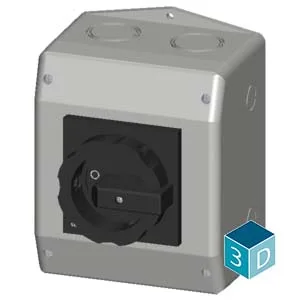

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3LD2265-8VQ51-0AF6

SENTRON, switch disconnector 3LD, DC switch, 2-pole, Iu: 32 A, operational current / at DC-21 A at 800 V: 32 A, molded-plastic enclosure for metric cable gland, rotary operating mechanism, black

SiemensMFR # 3LD2265-8VQ51-0AF6SKU # CEY-8EF3B02FC610

product brand nameSENTRON

product designationSwitch disconnector

design of the productDC switch

design of the actuating elementShort rotary knob

color of the actuating elementblack

design of handlerotary operating mechanism, black

Have questions?Chat on WhatsApp

About This Product

SENTRON, switch disconnector 3LD, DC switch, 2-pole, Iu: 32 A, operational current / at DC-21 A at 800 V: 32 A, molded-plastic enclosure for metric cable gland, rotary operating mechanism, black

Siemens 3LD2265-8VQ51-0AF6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSwitch disconnector

design of the productDC switch

display version for switch position indicator manual operation1 ON - 0 OFF

type of switchMolded-plastic enclosure for metric threaded joint

design of the actuating elementShort rotary knob

color of the actuating elementblack

design of handlerotary operating mechanism, black

type of the driving mechanism motor driveNo

General technical data

number of poles2

size of switch disconnector2

mechanical service life (operating cycles) typical10 000

operating frequency maximum120 1/h

degree of pollution3

Voltage

insulation voltage rated value800 V

surge voltage resistance rated value6 kV

at DC rated value800 V

Protection class

protection class IPIP65

degree of protection NEMA rating1, 4X, 12

protection class IP on the frontIP65

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.98 W

Auxiliary circuit

operating voltage of auxiliary contacts at AC maximum500 V

continuous current of the auxiliary contact rated value10 A

insulation voltage of the auxiliary switch rated value500 V

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product feature can be locked into OFF positionYes

Accessories

motor driveNo

voltage triggerNo

number of connectable NC contacts for auxiliary contacts attachable maximum3

number of connectable NO contacts for auxiliary contacts attachable maximum5

number of connectable CO contacts for auxiliary contacts attachable maximum0

number of bracket locks maximum3

hasp thickness of the bracket locks4 ... 8 mm

Short circuit

for short-circuit protection of the main circuit requiredfuse gR/aR: 80 A

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

operational current of upstream fuse rated value80 A

Connections

solid1x (1,5...16mm²)

finely stranded with core end processing1x (1,5...10mm²)

stranded1x (1,5...16mm²)

solidlateral auxiliary switch 2x (0,75 ... 2,5mm²), 1x 4mm²; front auxiliary switch 1x (0,75 ... 2,5mm²)

finely stranded with core end processinglateral auxiliary switch 2x (0,75 ... 1,5mm²), 1x 2,5mm²; front auxiliary switch 1x 2,5mm²

strandedlateral auxiliary switch 2x (0,75 ... 2,5mm²), 1x 4mm²; front auxiliary switch 1x (0,75 ... 2,5mm²)

for main current circuitbox terminal

for auxiliary contactsconnection terminals

Mechanical Design

height199 mm

width146 mm

depth141 mm

type of devicefixed mounting

fastening methodComplete unit in enclosure

4-hole front mountingNo

front mounting with central attachmentYes

rail mountingNo

Net Weight948 g

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-25 °C

maximum55 °C
