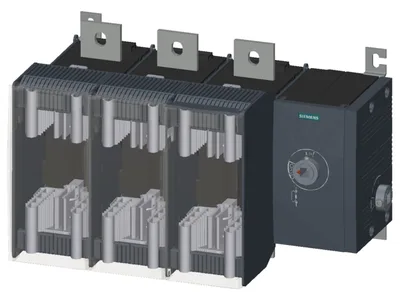

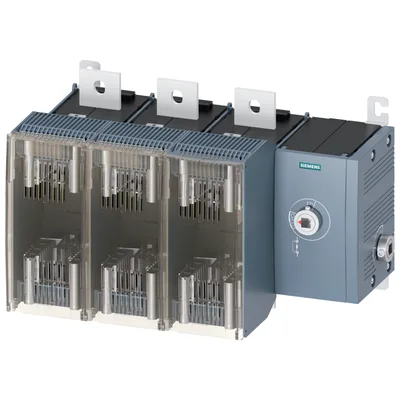

Siemens 3KF5363-4RF11

switch disconnector with fuse 630 A, frame size 5, 3-pole for LV HRC fuse size 2 and 3 lateral operating mechanism rig basic unit without handle flat connector without fuses

SiemensMFR # 3KF5363-4RF11SKU # YLSHNSMPVLLUE45

product brand nameSENTRON

product designation3KF switch disconnector with fuses

design of the product3KF switch disconnector with fuses

product version3KF NH

design of the actuating elementwithout

design of handleWithout

Have questions?Chat on WhatsApp

About This Product

switch disconnector with fuse 630 A, frame size 5, 3-pole for LV HRC fuse size 2 and 3 lateral operating mechanism rig basic unit without handle flat connector without fuses

Siemens 3KF5363-4RF11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3KF switch disconnector with fuses

design of the product3KF switch disconnector with fuses

product version3KF NH

design of the actuating elementwithout

design of handleWithout

direction of actuationfrom right

type of the driving mechanism motor driveNo

number of poles3

size of disconnecting link3 and 2

size of switch disconnector5

size of fuse linkNH2, NH3

mechanical service life (operating cycles) typical6 000

at AC-23 A at 440 V1 500

at AC-23 A at 690 V1 000

at DC-23 A at 440 V1 000

with closed switch for combination switch + fuse at 500 V maximum4 100 000 A²·s

with closed switch for combination switch + fuse at 400 V maximum4 100 000 A²·s

with closed switch at 690 V for combination switch + gG fuse maximum2 050 000 A²·s

of the fuse at 500 V maximum permissible10 400 000 A²·s

of the gG fuse at 690 V maximum permissible7 000 000 A²·s

of the aM fuse at 690 V maximum permissible7 000 000 A²·s

position of the switch operating mechanismright

fuse systemLV HRC fuse

overvoltage categoryIV

with degree of pollution 2 at DC rated value440 / 3

with degree of pollution 3 at DC rated value440 / 3

surge voltage resistance rated value12 kV

Supply voltage

operating voltage at AC rated value maximum690 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole40 W

with conventional rated thermal current per device120 W

with conventional rated thermal current without fuse per pole40 W

with conventional rated thermal current without fuse per device120 W

for rated value of the current at AC in hot operating state per pole40 W

of the fuse per fuse maximum48 W

Main circuit

operating power at AC-23 A at 500 V rated value400 kW

operational current rated value630 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts8

number of NO contacts for auxiliary contacts8

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchYes

suitability for use maintenance/repair switchYes

product feature interlockNo

product function phase failure monitoringNo

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

product feature sealableYes

product extension auxiliary switchYes

product extension optional locking capabilityYes

product extension optional motor driveNo

product extension optional fuse monitoringYes

fuse monitoringNo

overvoltage protection monitoringNo

Short circuit

short-circuit current making capacity (Icm) for switch disconnector at 690 V AC/440 V DC without fuse link rated value minimum44 kA

at 500 V by gG fuse rated value100 kA

at 690 V by gG fuse rated value80 kA

Connections

arrangement of electrical connectors for main current circuitTop and bottom

minimum50 N·m

maximum75 N·m

type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (25 ... 300 mm²), 2x (25 ... 300 mm²)

for copper busbar1x (50 x 10 mm²)

stranded with lug according to DIN 462341x (25 ... 240 mm²), 2x (25 ... 240 mm²)

type of electrical connection for main current circuitflat connector

Mechanical Design

height270 mm

width414 mm

depth262 mm

fastening methodfloor mounting

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

mounting positionany

Net Weight17.6 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C
