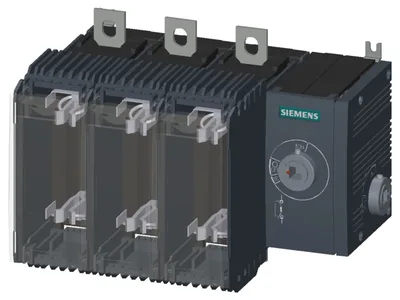

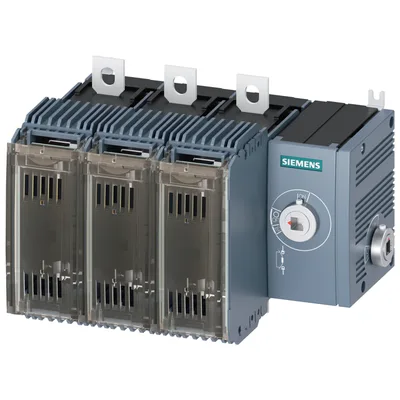

Siemens 3KF2316-4RF11

switch disconnector with fuse 160 A, frame size 2, 3-pole for LV HRC fuse size 000 and 00 lateral operating mechanism rig basic unit without handle flat connector without fuses

SiemensMFR # 3KF2316-4RF11SKU # YLSR5PZSKBKHFTN

product brand nameSENTRON

product designation3KF switch disconnector with fuses

design of the product3KF switch disconnector with fuses

product version3KF NH

design of the actuating elementwithout

design of handleWithout

Have questions?Chat on WhatsApp

About This Product

switch disconnector with fuse 160 A, frame size 2, 3-pole for LV HRC fuse size 000 and 00 lateral operating mechanism rig basic unit without handle flat connector without fuses

Siemens 3KF2316-4RF11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3KF switch disconnector with fuses

design of the product3KF switch disconnector with fuses

product version3KF NH

design of the actuating elementwithout

design of handleWithout

direction of actuationfrom right

type of the driving mechanism motor driveNo

number of poles3

size of disconnecting link00 and 000

size of switch disconnector2

size of fuse linkNH000, NH00

mechanical service life (operating cycles) typical12 000

at AC-23 A at 440 V8 000

at AC-23 A at 690 V5 000

at DC-23 A at 440 V1 000

with closed switch for combination switch + fuse at 500 V maximum150 600 A²·s

with closed switch for combination switch + fuse at 400 V maximum150 600 A²·s

with closed switch at 690 V for combination switch + gG fuse maximum89 640 A²·s

of the fuse at 500 V maximum permissible223 000 A²·s

of the gG fuse at 690 V maximum permissible360 000 A²·s

of the aM fuse at 690 V maximum permissible565 000 A²·s

position of the switch operating mechanismright

fuse systemLV HRC fuse

overvoltage categoryIV

with degree of pollution 2 at DC rated value440 / 3

with degree of pollution 3 at DC rated value440 / 3

surge voltage resistance rated value12 kV

Supply voltage

operating voltage at AC rated value maximum690 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole7.2 W

with conventional rated thermal current per device21.6 W

with conventional rated thermal current without fuse per pole7.2 W

with conventional rated thermal current without fuse per device21.6 W

for rated value of the current at AC in hot operating state per pole7.2 W

of the fuse per fuse maximum12 W

Main circuit

operating power at AC-23 A at 500 V rated value110 kW

operational current rated value160 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts6

number of NO contacts for auxiliary contacts6

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchYes

suitability for use maintenance/repair switchYes

product feature interlockNo

product function phase failure monitoringNo

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

product feature sealableYes

product extension auxiliary switchYes

product extension optional locking capabilityYes

product extension optional motor driveNo

product extension optional fuse monitoringYes

fuse monitoringNo

overvoltage protection monitoringNo

Short circuit

short-circuit current making capacity (Icm) for switch disconnector at 690 V AC/440 V DC without fuse link rated value minimum7.65 kA

at 500 V by gG fuse rated value100 kA

at 690 V by gG fuse rated value100 kA

Connections

arrangement of electrical connectors for main current circuitTop and bottom

minimum15 N·m

maximum22 N·m

type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (2.5 ... 95 mm²), 2x (2.5 ... 50 mm²)

for copper busbar1x (20 x 3 mm²)

stranded with lug according to DIN 462341x (2.5 ... 95 mm²), 2x (2.5 ... 50 mm²)

stranded with lug according to DIN 462351x (25 ... 70 mm²), 2x (25 ... 50 mm²)

type of electrical connection for main current circuitflat connector

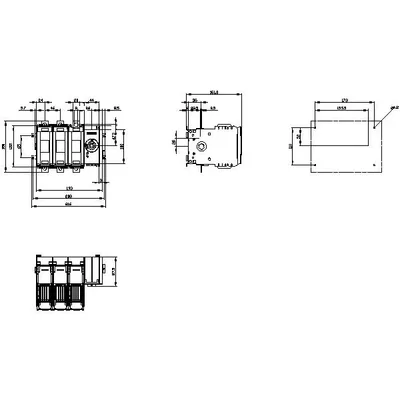

Mechanical Design

height150 mm

width203.7 mm

depth161.5 mm

fastening methodfloor mounting

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

mounting positionany

Net Weight2.91 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Accessories 51

Genuine accessories that can be used with the Siemens 3KF2316-4RF11 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
