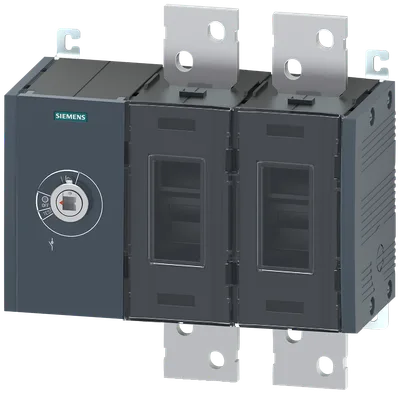

Siemens 3KD5120-0RE10-0

switch disconnector 1000A, frame size 5, 2-pole DC500V, front operating mech. left, basic unit without handle, flat terminal, DC-21B

SiemensMFR # 3KD5120-0RE10-0SKU # YLS8YHFXQ7XS9K3

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

design of the actuating elementLong rotary knob

type of the driving mechanismFront operating mechanism

number of poles2

Have questions?Chat on WhatsApp

About This Product

switch disconnector 1000A, frame size 5, 2-pole DC500V, front operating mech. left, basic unit without handle, flat terminal, DC-21B

Siemens 3KD5120-0RE10-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

display version for switch position indicator manual operationON-OFF-TEST

design of the actuating elementLong rotary knob

type of the driving mechanismFront operating mechanism

type of the driving mechanism motor driveNo

General technical data

number of poles2

type of devicefixed mounting

size of switch disconnector5

mechanical service life (operating cycles) typical8 000

at AC-23 A at 690 V500

at DC-23 A at 440 V500

position of the switch operating mechanismat the left end

overvoltage categoryIII

degree of pollution3

Voltage

with degree of pollution 2 at DC rated value500V

with degree of pollution 3 at DC rated value500V

rated value1 000 V

surge voltage resistance rated value12 kV

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole20 W

with conventional rated thermal current per device40 W

for rated value of the current at AC in hot operating state per pole20 W

Main circuit

operational current rated value1 000 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts8

number of NO contacts for auxiliary contacts8

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use according to IEC 62626-1 safety switchNo

suitability for use maintenance/repair switchYes

Product details

product feature interlockYes

trip indicatorNo

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

product extension auxiliary switchYes

product extension optional motor driveNo

product extension optional voltage triggerNo

Connections

stranded with lug1x (120 ... 300 mm²), 2x (95 ... 300 mm²)

for copper busbar'2 x (60 x 10 mm²)

stranded with lug according to DIN 462341x (120 ... 240 mm²), 2x (95 ... 240 mm²)

stranded with lug according to DIN 462351x (120 ... 240 mm²), 2x (95 ... 240 mm²)

type of electrical connection for main current circuitflat connector

Mechanical Design

height310 mm

width292 mm

depth153 mm

fastening methodscrew fixing

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

mounting positionany

Net Weight153 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q
