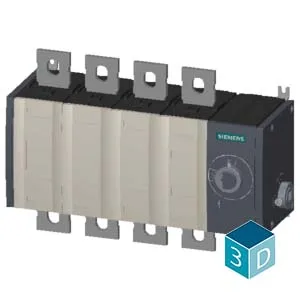

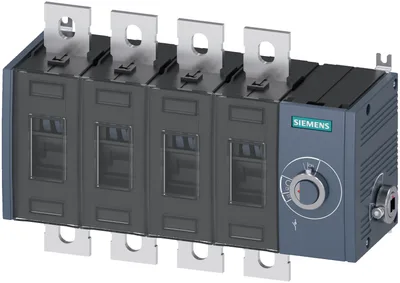

Siemens 3KD4444-0PE40-0

SWITCH-DISCONNECTOR 500A, FRAME SIZE 3, 4-POLE LATERAL DRIVE RIGHT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL

SiemensMFR # 3KD4444-0PE40-0SKU # YLSWNIUYYBCSRHY

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

design of the actuating elementWithout handle

type of the driving mechanismSide operating mechanism

number of poles4

Have questions?Chat on WhatsApp

About This Product

SWITCH-DISCONNECTOR 500A, FRAME SIZE 3, 4-POLE LATERAL DRIVE RIGHT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL

Siemens 3KD4444-0PE40-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

display version for switch position indicator door-coupling rotary operating mechanismON-OFF

design of the actuating elementWithout handle

type of the driving mechanismSide operating mechanism

type of the driving mechanism motor driveNo

General technical data

number of poles4

type of devicefixed mounting

size of switch disconnector3

mechanical service life (operating cycles) typical15 000

at AC-23 A at 690 V1 000

at DC-23 A at 440 V1 000

with closed switch at 1000 V for combination switch +gG/aM SITOR fuse maximum239 650 A²·s

of the fuse at 500 V maximum permissible2 700 000 A²·s

of the gG fuse at 690 V maximum permissible2 500 000 A²·s

of the gG/aM SITOR fuse at 1000 V maximum permissible260 000 A²·s

of the molded case circuit breaker at 415 V maximum permissible4 750 000 A²·s

position of the switch operating mechanismat the right end

overvoltage in percent relative to the operating voltage at AC at 400, 500, 690 V at 50/60 Hz10 %

overvoltage categoryIV

degree of pollution3

Voltage

with degree of pollution 2 at DC rated value440 V / 3

with degree of pollution 3 at DC rated value440 V / 3

rated value1 000 V

surge voltage resistance rated value12 kV

operational current at AC-22 A at 1000 V maximum400 A

let-through current of the fuse at 500 V maximum permissible54 800 A

let-through current of the gG fuse at 690 V maximum permissible45 200 A

Supply voltage

operating voltage at AC rated value1 000 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole17.2 W

with conventional rated thermal current per device68.8 W

for rated value of the current at AC in hot operating state per pole17.2 W

Main circuit

at AC-23 A at 500 V rated value250 kW

operational current rated value400 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts6

number of NO contacts for auxiliary contacts6

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use according to IEC 62626-1 safety switchNo

suitability for use maintenance/repair switchYes

Product details

product feature interlockNo

trip indicatorNo

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

product extension auxiliary switchYes

product extension optional motor driveNo

product extension optional voltage triggerNo

Short circuit

short-time withstand current (Icw) at 1000 V AC/440 V DC limited to 1 s rated value13 kA

at 1000 V AC without fuse link rated value minimum36 kA

at DC 440 V without fuse link rated value minimum36 kA

without fuse link rated value minimum36 kA

at 415 V by molded case circuit breaker rated value65 kA

at 500 V by gG fuse rated value100 kA

at 690 V by gG fuse rated value100 kA

Connections

stranded with lug1x (25 ... 240 mm²), 2x (25 ... 120 mm²)

with combination of Al conductor+switch315 A / 240 mm²

for copper busbar'1 x (30 x 10 mm²)

stranded with lug according to DIN 462341x (6 ... 240 mm²), 2x (6 ... 150 mm²)

stranded with lug according to DIN 462351x (16 ... 185 mm²), 2x (16 ...150 mm²)

type of electrical connection for main current circuitflat connector

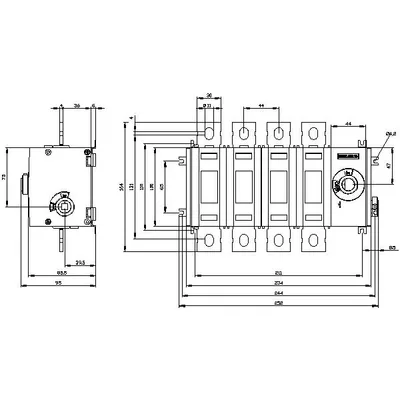

Mechanical Design

height164 mm

width242.5 mm

depth95 mm

fastening methodscrew fixing

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

mounting positionany

Net Weight3.559 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q
