How can I get a price quote for Siemens 3KC9000-8CL10?

You can request a fast quote for Siemens 3KC9000-8CL10 from Yılsa Engineering. Reference part number CEY-8EF3B039664E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3KC9000-8CL10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3KC9000-8CL10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3KC9000-8CL10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

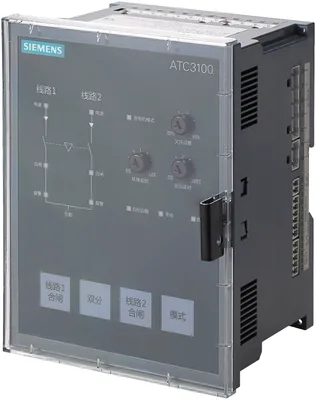

Siemens 3KC9000-8CL10

Transfer control device ATC 3100 CN

SiemensMFR # 3KC9000-8CL10SKU # CEY-8EF3B039664E

product brand nameSENTRON

design of the productATC3100, Chinese version

size of the circuit-breaker3KC9

minimum-25 °C

maximum70 °C

switchover time of the control device0.5 s

Have questions?Chat on WhatsApp

About This Product

Siemens 3KC9000-8CL10 (Transfer control device ATC 3100 CN) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3KC9000-8CL10 — price, stock availability and technical specifications.

Siemens 3KC9000-8CL10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationAccessories for transfer switching equipment

design of the productATC3100, Chinese version

General technical data

size of the circuit-breaker3KC9

minimum-25 °C

maximum70 °C

switchover time of the control device0.5 s

overvoltage category4

Voltage

insulation voltage rated value400 V

overvoltage category according to IEC 61010CAT IV

Protection class

on the frontIP41

rear sideIP20

Main circuit

minimum50 Hz

maximum60 Hz

Product details

product component of the hardware real time clock backup batteryNo

product feature of enclosure materialThermoplast Bayblend FR3010

Accessories

accessoriesTransfer control devices

Inputs Outputs

number of digital inputs0

relay design6 relays: 1 NO, 8 A, 250 V AC, 3 relays: 1 NO, 16 A, 250 V AC

input delay time0.4 s

Number

number of monitored phases4

Connections

minimum0.5 mm²

maximum2.5 mm²

minimum20

maximum12

minimum0.2 N·m

maximum0.4 N·m

type of electrical connectionRemovable/pluggable

Mechanical Design

height171.2 mm

width131.2 mm

depth99 mm

Net Weight1.1 kg

Environmental conditions

relative humidity reference value95 %

minimum-40 °C

maximum80 °C
