How can I get a price quote for Siemens 3KC8458-0JA22-0GA3?

You can request a fast quote for Siemens 3KC8458-0JA22-0GA3 from Yılsa Engineering. Reference part number CEY-8EF3B0396650. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3KC8458-0JA22-0GA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3KC8458-0JA22-0GA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3KC8458-0JA22-0GA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

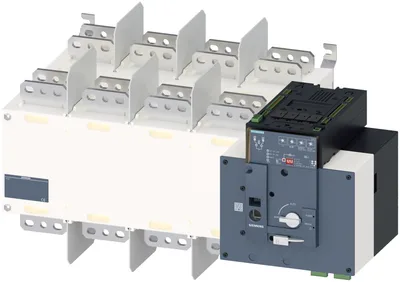

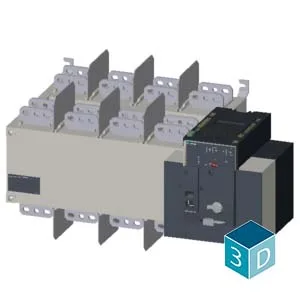

Siemens 3KC8458-0JA22-0GA3

SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 2500 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection

SiemensMFR # 3KC8458-0JA22-0GA3SKU # CEY-8EF3B0396650

product brand nameSENTRON

product categoryATE

product designationtransfer switching equipment

design of the productautomatic

design of the actuating elementLong rotary knob

design of handleHandle

Have questions?Chat on WhatsApp

About This Product

Siemens 3KC8458-0JA22-0GA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product categoryATE

product designationtransfer switching equipment

design of the productautomatic

display version for switch position indicator manual operationI - O - II

design of the actuating elementLong rotary knob

design of handleHandle

type of the driving mechanismmotorized operating mechanism

type of the driving mechanism motor driveYes

General technical data

number of poles4

type of devicefixed mounting

mechanical service life (operating cycles) for function sequence O-I-O typical1 500

position of the switch operating mechanismat the right end

overvoltage categoryIII

degree of pollution3

rated value1 000 V

Supply voltage

minimum166 V

maximum332 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per device1 020 W

Main circuit

minimum45 Hz

maximum65 Hz

operational current rated value2 500 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts3

number of connected CO contacts for auxiliary contacts4

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

product feature interlockYes

product extension auxiliary switchNo

product extension optional motor driveNo

product extension optional voltage triggerNo

Short circuit

at 415 V AC without fuse link according to IEC 60947-3 rated value minimum105 kA

at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum105 kA

input current at digital input with signal <0> maximum2.1 mA

number of digital inputs11

design of the switching inputConnected with control terminal

relay design2 relays: 2NO, 2A 250 VAC or 2A 24 VDC; 1 relay: 1CO, 2A 250 VAC or 2A 24 VDC

pulse duration minimum0.06 s

input delay time0.046 s

number of monitored phases3

Connections

for copper busbar2x100x10

of the inputs and outputsRemovable/insertable

for main current circuitbusbar connection

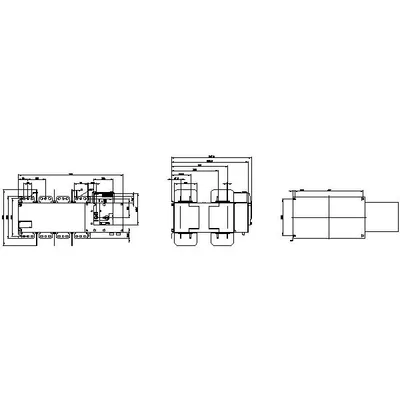

Mechanical Design

height380 mm

width716 mm

depth569 mm

fastening methodscrew fixing

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

Net Weight76.5 kg

Environmental conditions

minimum-20 °C

maximum70 °C

minimum-40 °C

maximum70 °C

Accessories 15

Genuine accessories that can be used with the Siemens 3KC8458-0JA22-0GA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KC9828-5	Aksesuar
3KC9821-0	Aksesuar
3KC9826-0	Aksesuar
3KC9820-5	Aksesuar
3KC9826-4	Aksesuar
3KC9808-6	Aksesuar
3KC9000-8TL40	Aksesuar
3KC9625-1	Aksesuar
3KC9811-1	Seçmeli zorunlu ürün
3KC9811-2	Seçmeli zorunlu ürün
3KC9811-3	Seçmeli zorunlu ürün
3KC9811-4	Seçmeli zorunlu ürün
3KC9818-8	Seçmeli zorunlu ürün
3KC9833-7	Seçmeli zorunlu ürün
3KC9834-7	Seçmeli zorunlu ürün
