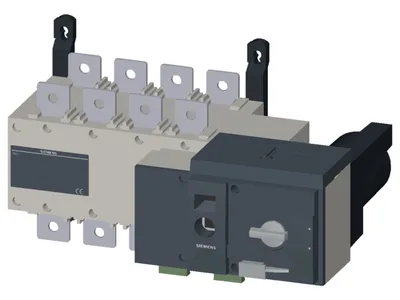

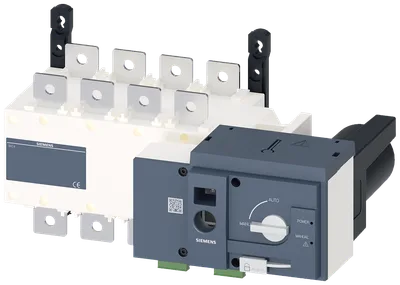

Siemens 3KC4442-0DA21-0AA3

SENTRON, transfer switching equipment 3KC, remotely operated, RTSE, 4-pole, Iu: 400 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 200 A, Ie at AC-23 A at 690 V: 125 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection

SiemensMFR # 3KC4442-0DA21-0AA3SKU # CEY-8EF3B0396671

product brand nameSENTRON

product designationtransfer switching equipment

design of the productremote-controlled

design of the actuating elementLong rotary knob

design of handleHandle

type of the driving mechanismmotorized operating mechanism

Have questions?Chat on WhatsApp

About This Product

Siemens 3KC4442-0DA21-0AA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationtransfer switching equipment

design of the productremote-controlled

display version for switch position indicator manual operationI - O - II

design of the actuating elementLong rotary knob

design of handleHandle

type of the driving mechanismmotorized operating mechanism

type of the driving mechanism motor driveYes

General technical data

number of poles4

type of devicefixed mounting

mechanical service life (operating cycles) for function sequence O-I-O typical4 000

with closed switch at 690 V for combination switch + gG fuse maximum1 884 000 A²·s

of the fuse at 415 V maximum permissible600 000 A²·s

of the gG fuse at 690 V maximum permissible2 100 000 A²·s

position of the switch operating mechanismat the right end

overvoltage categoryIV

degree of pollution3

rated value1 000 V

with degree of pollution 3 at DC rated value1 000 V

Supply voltage

minimum166 V

maximum332 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per device60.4 W

Main circuit

minimum45 Hz

maximum65 Hz

operational current rated value400 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts3

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts4

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

product feature interlockYes

product extension auxiliary switchYes

product extension optional motor driveNo

product extension optional voltage triggerNo

Short circuit

at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum17 kA

at 690 V AC without fuse link according to IEC 60947-3 rated value minimum22 kA

at 415 V by gG fuse according to IEC 60947-6-1 rated value50 kA

at 415 V by gG fuse rated value50 kA

at 690 V by gG fuse according to IEC 60947-3 rated value50 kA

input current at digital input with signal <0> maximum1 mA

number of digital inputs5

design of the switching inputConnected with control terminal

relay design1 relay: 1NO, 2A 250 VAC or 2A 24 VDC.

pulse duration minimum0.06 s

input delay time0.046 s

Connections

for copper busbar1x32x8

stranded with lug according to DIN 462341x(185...240 mm²)

of the inputs and outputsRemovable/insertable

for main current circuitbusbar connection

Mechanical Design

height170 mm

width378 mm

depth292 mm

fastening methodscrew fixing

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

Net Weight10.725 kg

Environmental conditions

minimum-20 °C

maximum70 °C

minimum-40 °C

maximum70 °C

Accessories 8

Genuine accessories that can be used with the Siemens 3KC4442-0DA21-0AA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KC9000-8TL40	Aksesuar
3KC9625-1	Aksesuar
3KC9803-1	Aksesuar
3KC9828-1	Aksesuar
3KC9826-1	Aksesuar
3KC9820-6	Aksesuar
3KC9804-2	Aksesuar
3KC9818-3	Seçmeli zorunlu ürün
