How can I get a price quote for Siemens 3KC0452-0RE00-0AA0?

You can request a fast quote for Siemens 3KC0452-0RE00-0AA0 from Yılsa Engineering. Reference part number YLSIJJHL8ILQ9W. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3KC0452-0RE00-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3KC0452-0RE00-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3KC0452-0RE00-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

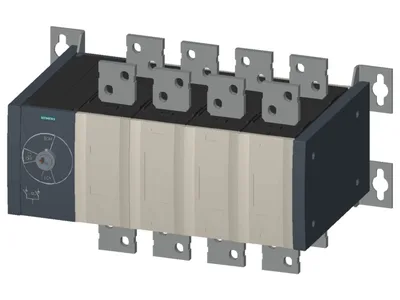

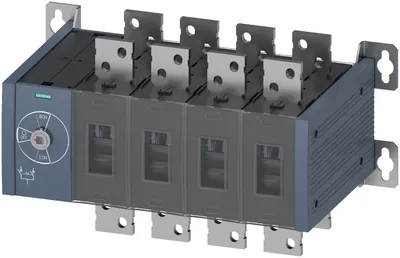

Siemens 3KC0452-0RE00-0AA0

SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-pole, Iu: 1250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 800 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection

SiemensMFR # 3KC0452-0RE00-0AA0SKU # YLSIJJHL8ILQ9W

product brand nameSENTRON

product designationtransfer switching equipment

design of the productmanually operated

design of the actuating elementWithout handle

design of handlewithout

type of the driving mechanismFront operating mechanism

Have questions?Chat on WhatsApp

About This Product

Siemens 3KC0452-0RE00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationtransfer switching equipment

design of the productmanually operated

display version for switch position indicator door-coupling rotary operating mechanismI ON- O OFF- II ON

design of the actuating elementWithout handle

design of handlewithout

type of the driving mechanismFront operating mechanism

type of the driving mechanism motor driveNo

General technical data

number of poles4

type of devicefixed mounting

size of switch disconnector5

mechanical service life (operating cycles) for function sequence O-I-O typical6 000

with closed switch for combination switch + fuse at 500 V maximum25 960 000 A²·s

of the fuse at 415 V maximum permissible34 800 005 A²·s

of the fuse at 500 V maximum permissible34 800 005 A²·s

with closed switch for combination switch + fuse at 415 V maximum25 960 000 A²·s

position of the switch operating mechanismat the left end

overvoltage categoryIV

degree of pollution3

rated value1 000 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per device280 W

Main circuit

at AC-23 A at 400 V at 50/60 Hz rated value400 kW

at AC-23 A at 500 V rated value560 kW

operational current rated value1 250 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts16

number of NO contacts for auxiliary contacts16

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchYes

suitability for use maintenance/repair switchYes

product feature interlockNo

product extension auxiliary switchYes

product extension optional motor driveNo

product extension optional voltage triggerNo

Short circuit

at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum105 kA

at 690 V AC without fuse link according to IEC 60947-3 rated value minimum105 kA

at 415 V by gG fuse according to IEC 60947-6-1 rated value80 kA

at 415 V by gG fuse rated value80 kA

at 500 V by gG fuse according to IEC 60947-3 rated value80 kA

Connections

type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (120 ... 300 mm²), 2x (95 ... 300 mm²)

with combination of Al conductor+switch680 A / 2x 300 mm²

for copper busbar2x (60 x10 mm²)

stranded with lug according to DIN 462341x (120 ... 240 mm²), 2x (95 ... 240 mm²)

stranded with lug according to DIN 462351x (120 ... 240 mm²), 2x (95 ... 240 mm²)

for main current circuitbusbar connection

Mechanical Design

height310 mm

width565 mm

depth311.5 mm

fastening methodscrew fixing

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingNo

Net Weight52.5 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Accessories 16

Genuine accessories that can be used with the Siemens 3KC0452-0RE00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1400-1AA10-1FA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1BA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1CA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1DA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1EA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1QA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1LA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1MA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1NA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1PA0	Aksesuar · Commanding and signaling devices
3KD9504-8	Aksesuar
3KD9508-8	Aksesuar
8UD1161-4AE21	Seçmeli zorunlu ürün
3KC9501-1	Seçmeli zorunlu ürün
3KC9501-2	Seçmeli zorunlu ürün
3KC9518-0	Seçmeli zorunlu ürün
