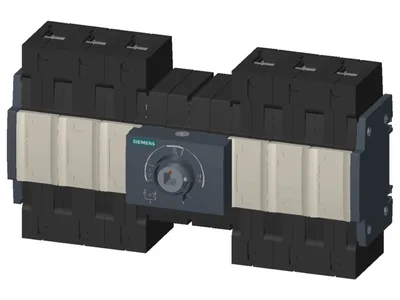

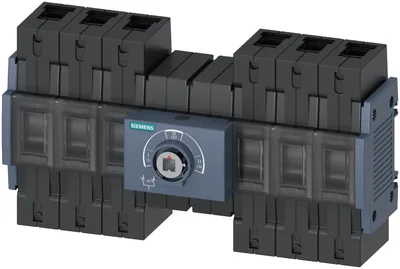

Siemens 3KC0334-2NE00-0AA0

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 2, 3-pole, Iu: 160 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 160 A, Ie at AC-23 A at 690 V: 125 A, screw and standard mounting rail installation 35 mm, Front operating mechanism, centered, without handle, box terminal

SiemensMFR # 3KC0334-2NE00-0AA0SKU # YLSNYNK97F7MJTX

product brand nameSENTRON

product designationtransfer switching equipment

design of the productmanually operated

design of the actuating elementWithout handle

design of handlewithout

type of the driving mechanismFront operating mechanism

Have questions?Chat on WhatsApp

About This Product

Siemens 3KC0334-2NE00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationtransfer switching equipment

design of the productmanually operated

display version for switch position indicator door-coupling rotary operating mechanismI ON- O OFF- II ON

design of the actuating elementWithout handle

design of handlewithout

type of the driving mechanismFront operating mechanism

type of the driving mechanism motor driveNo

General technical data

number of poles3

type of devicefixed mounting

size of switch disconnector2

mechanical service life (operating cycles) for function sequence O-I-O typical15 000

with closed switch for combination switch + fuse at 500 V maximum135 600 A²·s

with closed switch at 690 V for combination switch + gG fuse maximum178 300 A²·s

with closed switch at 690 V for combination switch + aM fuse maximum201 200 A²·s

of the fuse at 415 V maximum permissible223 005 A²·s

of the fuse at 500 V maximum permissible223 005 A²·s

of the gG fuse at 690 V maximum permissible226 005 A²·s

of the aM fuse at 690 V maximum permissible235 000 A²·s

with closed switch for combination switch + fuse at 415 V maximum135 600 A²·s

position of the switch operating mechanismin center

overvoltage categoryIII

degree of pollution3

rated value1 000 V

Protection class

protection class IPIP20

with closed switch with cover or cable lug coverIP20

on the frontIP20

Dissipation

with conventional rated thermal current per device21 W

Main circuit

at AC-23 A at 400 V at 50/60 Hz rated value90 kW

at AC-23 A at 500 V rated value110 kW

operational current rated value160 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts8

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchYes

suitability for use maintenance/repair switchYes

product feature interlockNo

product extension auxiliary switchYes

product extension optional motor driveNo

product extension optional voltage triggerNo

Short circuit

at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum17 kA

at 690 V AC without fuse link according to IEC 60947-3 rated value minimum12 kA

at 415 V by gG fuse according to IEC 60947-6-1 rated value100 kA

at 415 V by gG fuse rated value100 kA

at 500 V by gG fuse according to IEC 60947-3 rated value100 kA

at 690 V by gG fuse according to IEC 60947-3 rated value65 kA

Connections

type of connectable conductor cross-sections with flexible busbar3x (0.8x14 mm²)

for copper busbar1x (3x14 mm²)

solid1x (2.5 ... 16 mm²)

finely stranded with core end processing1x (2.5 ... 70 mm²)

stranded1x(10...70 mm²)

for main current circuitbox terminal

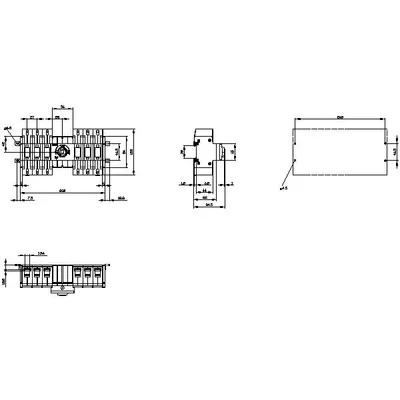

Mechanical Design

height126 mm

width255.6 mm

depth84.5 mm

fastening methodScrew fixing and standard rail mounting 35 mm

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingYes

mounting positionany

Net Weight2.231 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Accessories 7

Genuine accessories that can be used with the Siemens 3KC0334-2NE00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KC9120-1	Aksesuar
3KD9103-5	Aksesuar
3KD9120-1	Aksesuar
3KF9112-0BA00	Aksesuar
3KD9205-2	Aksesuar
8UD1131-2AE21	Seçmeli zorunlu ürün
3KC9201-3	Seçmeli zorunlu ürün
