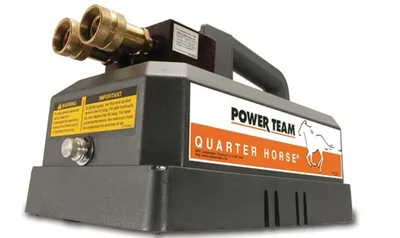

Power Team PR102

Quarter Horse® PE10 Electric 2-Speed Pump - Single-Acting, 1/4 hp, 0.26 gal Reservoir, 60.0 in³ Usable Capacity, 10 in³/min Flow at Max psi, 12V DC

Power TeamMFR # PR102SKU # YLS7EE2C78TO861

Pump TypePE10 Electric 2-Speed Pump

Power Rating1/4 hp

Voltage12V DC

UPC_NO662536225120

Amperage35.0 A

Valve Part Number9561

Have questions?Chat on WhatsApp

About This Product

Quarter Horse® PE10 Electric 2-Speed Pump - Single-Acting, 1/4 hp, 0.26 gal Reservoir, 60.0 in³ Usable Capacity, 10 in³/min Flow at Max psi, 12V DC

Features and Benefits

Portable power source for hydraulic cylinders, and tools
Permanent magnet motor starts easily under load, even with reduced voltage conditions
Comes with an 8 ft. alligator clip cord for 12 volt DC use
Optional rechargeable battery pack with shoulder strap for maximum portability
Pump typically delivers 15 minutes of continuous operation at 10,000 psi on a single battery
Pump can be operated in any position
High-impact housing with flame – retardant construction
Base mounting holes for fixed installations

Power Team PR102

Genuine, certified Power Team product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Pump TypePE10 Electric 2-Speed Pump

Power Rating1/4 hp

Voltage12V DC

UPC_NO662536225120

Amperage35.0 A

Valve Part Number9561

Valve Type2-Way Auto Dump

Valve Type/Function2-Way Auto Dump / Advance Return (Auto)

Valve Function DetailsAdvance position holds pressure with motor shut off. Return position advances cylinder with motor running and returns cylinder with motor shut off.

Control SwitchRocker Type Off, Momentary On

Reservoir Capacity0.26 gal (US)

Usable Oil Capacity60.0 in³

Typical Flow At Max Psi10 in³/min

Typical Flow At 10000 Psi10 in³/min

Typical Flow At 0 Psi120 in³/min

Max Pressure10000 psi

Sound Level At Idle 10000 Psi68/74 dB(a)

Includes8 ft. alligator clip cord for 12 volt DC use

Overall Length13.000 in

Overall Width7.750 in

Overall Height8.000 in
