How can I get a price quote for Power Team PQ1204?

You can request a fast quote for Power Team PQ1204 from Yılsa Engineering. Reference part number YLSKFM7PLINZ863. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Power Team PQ1204 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Power Team PQ1204 genuine and new?

Yes. This Power Team product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Power Team PQ1204?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

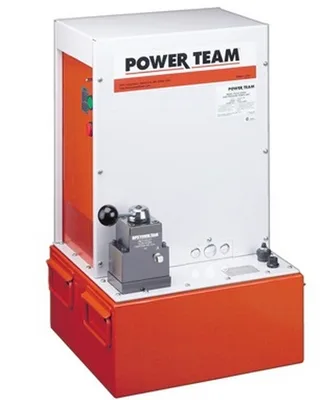

Power Team PQ1204

PQ120 Heavy Duty Electric Pump - Double-Acting, 3 hp, 5.70 gal Reservoir, 1250.0 in³ Usable Capacity, 120 in³/min Flow at Max psi, 460 V, 60 Hz

Power TeamMFR # PQ1204SKU # YLSKFM7PLINZ863

Pump TypePQ120 Heavy Duty Electric Pump

Power Rating3 hp

Voltage460 V

Frequency60 Hz

UPC_NO662536002394

Amperage10.5 A

Have questions?Chat on WhatsApp

About This Product

PQ120 Heavy Duty Electric Pump - Double-Acting, 3 hp, 5.70 gal Reservoir, 1250.0 in³ Usable Capacity, 120 in³/min Flow at Max psi, 460 V, 60 Hz

Features and Benefits

Designed specifically for heavy duty, extended cycle operations—up to 400 tons
Start and operate under full load, even with voltage reduced 10 %
Electrical shut-down feature prevents unintentional restarting of motor following an electrical service interruption
Internal relief valve limits pressure to 10,000 psi. External relief valve is adjustable from 1,000 to 10,000 psi
Pump prewired at factory with a 3hp, 460 volt, 60 Hz. 3 Phase motor with thermal overload protection—motor starter and heater element supplied as standard equipment
24 volt control circuits on units with remote controls for added user/operator safety
Metal shroud keeps dirt and moisture out of motor and electrical components
Pumps operate below maximum OSHA noise limitation

Power Team PQ1204

Genuine, certified Power Team product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Pump TypePQ120 Heavy Duty Electric Pump

Power Rating3 hp

Voltage460 V

Frequency60 Hz

UPC_NO662536002394

Amperage10.5 A

Max Amp Draw 10000 Psi10.5 A @ 230 V, 5.3 A @ 460 V

Max Rpm1725 rpm

Valve Part Number9506

Valve Type4-Way, 3-Position (Tandem Center) Valve w/Posi-Check®

Valve Type/Function4-Way, 3-Position / Advance Hold Return

Valve Function Details“Advance,” “hold” and “return.” The Posi-Check® feature guards against pressure loss when shifting from “advance” to “hold” position.

Control SwitchRun/Off/Pulse

Reservoir Capacity5.70 gal (US)

Reservoir Capacity Cubic Inches1316.7 in³

Usable Oil Capacity1250.0 in³

Typical Flow At Max Psi120 in³/min

Typical Flow At 10000 Psi120 in³/min

Typical Flow At 5000 Psi130 in³/min

Typical Flow At 1000 Psi160 in³/min

Typical Flow At 100 Psi730 in³/min

Max Pressure10000 psi

Sound Level At Idle 10000 Psi73/78 dB(a)

Overall Length15.500 in
