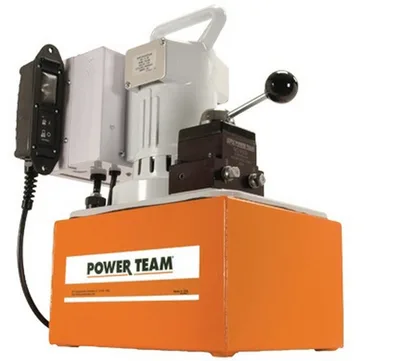

Power Team PE1204FR-230

Electric/Hydraulic Foundation Repair Pump - Single or Double-Acting, 1-1/8 hp, 2.50 gal Reservoir, 525.0 in³ Usable Capacity, 100 in³/min Flow at Max psi, 230 V, 50/60 Hz

Power TeamMFR # PE1204FR-230SKU # YLS04WELLLIQOW1

Power Rating1-1/8 hp

Voltage230 V

Frequency50/60 Hz

UPC_NO662536607438

Amperage14.0 A

Max Rpm12000 rpm

Have questions?Chat on WhatsApp

About This Product

Electric/Hydraulic Foundation Repair Pump - Single or Double-Acting, 1-1/8 hp, 2.50 gal Reservoir, 525.0 in³ Usable Capacity, 100 in³/min Flow at Max psi, 230 V, 50/60 Hz

Features and Benefits

This electric/hydraulic pump is a two-stage, continuous pressure pump that contains all the necessary controls and circuitry for powering any single or double-acting continuous pressure cylinders
It has an external pressure regulator, infinitely adjustable throughout the operating pressure range of 1000 to 6500 psig
An internal safety relief valve prevents damage from exceeding the maximum rated pressure
It’s a gear/axial piston pump designed for use in single or multiple station applications
CSA approved model available
Drip proof universal motor
Filtered filler/breather cap
Liquid filled gauge
Carrying handle
2-1/2 gal metal reservoir
525 in³ usable oil
Oil flow at max. pressure: 100 in³/min
