How can I get a price quote for Festo YXCR-2?

You can request a fast quote for Festo YXCR-2 from Yılsa Engineering. Reference part number YLSKW7NLG0WCITJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo YXCR-2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo YXCR-2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo YXCR-2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

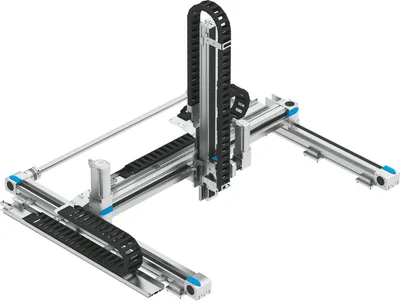

Festo YXCR-2

Three-dimensional gantry. Ready-to-install complete system including energy chain for cables or tubing as well as suitable motor and servo drive package. For three-dimensional movements in horizontal working areas. Flexible working area due to scalable strokes in the X, Y and Z directions. Serial kinematic drive concept based on toothed belt and spindle axes. Choice of vertical axis - pneumatic or electric. High mechanical rigidity and sturdy design. For universal use. Especially suitable for long strokes in all directions

FestoMFR # YXCR-2SKU # YLSKW7NLG0WCITJ

Req. flatness mounting surfaces0.1

Mounting positionHorizontal

Duty cycle100%

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Relative air humidity0 - 90%

Have questions?Chat on WhatsApp

About This Product

Festo YXCR-2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Req. flatness mounting surfaces0.1

Required parallelism of the mounting surfaces0.1

Mounting positionHorizontal

DesignThree-dimensional gantry system, With electric and pneumatic drive modules

Duty cycle100%

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Relative air humidity0 - 90%

Ambient temperature5, 45

Maintenance interval2500

Note on materialsRoHS compliant

Material adapter plateAnodised aluminium, Coated steel

Material mounting bracketHigh-alloy stainless steel

Material energy chainsReinforced PA

Accessories 12

Genuine accessories that can be used with the Festo YXCR-2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GFCH-1	Commissioning · Services
GFCH-2	Commissioning · Services
GFCH-3	Commissioning · Services
GFCH-1-G	Commissioning · Services
GFCH-2-G	Commissioning · Services
GFCH-3-G	Commissioning · Services
GFCH-1-R	Remote commissioning · Services
GFCH-2-R	Remote commissioning · Services
GFCH-3-R	Remote commissioning · Services
GFCH-1-G-R	Remote commissioning · Services
GFCH-2-G-R	Remote commissioning · Services
GFCH-3-G-R	Remote commissioning · Services
