How can I get a price quote for FESTO YSRW-12-20?

You can request a fast quote for FESTO YSRW-12-20 from Yılsa Engineering. Reference part number CEY-937FC782261B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO YSRW-12-20 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO YSRW-12-20 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO YSRW-12-20?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

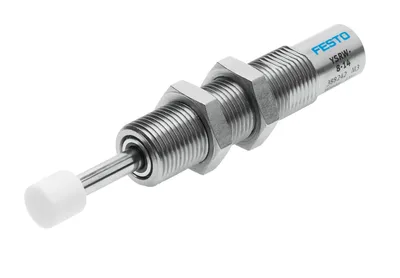

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO YSRW-12-20

Shock absorber. Hydraulic shock absorber with path-controlled flow control function. Gently increasing cushioning force curve. Long cushioning stroke. Suitable for low-vibration operation. Short cycle times possible

FESTOMFR # YSRW-12-20SKU # CEY-937FC782261B

Size12

Stroke20

Mounting positionAny

Position detectionNone

Symbol00991495

Max. impact speed3

Have questions?Chat on WhatsApp

About This Product

FESTO YSRW-12-20

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

Stroke20

CushioningSelf-adjusting, Soft characteristic curve

Mounting positionAny

Position detectionNone

Symbol00991495

Max. impact speed3

Reset time at room temperature0.3

Reset time at min. ambient temperature1

Mode of operationPushing, Single-acting

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 80

Cushioning length20

Max. stop force1000

Max. energy consumption per stroke12

Max. energy consumption per hour41000

Max. residual energy0.05

Reset force5

Min. insertion force35

Product weight78

Load range30

Type of mountingVia lock nut

Note on materialsRoHS compliant

Material sealsNBR

Material housingGalvanised steel

Material piston rodHigh-alloy steel

Accessories 3

Genuine accessories that can be used with the FESTO YSRW-12-20 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
