How can I get a price quote for Festo VZXA?

You can request a fast quote for Festo VZXA from Yılsa Engineering. Reference part number YLSK6TSJXDRJRH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VZXA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VZXA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VZXA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

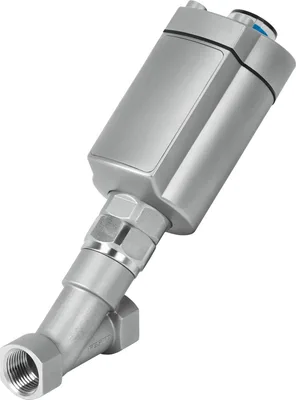

Festo VZXA

Angle seat valve. Highly flexible, extremely high flow rates. Long service life. Stainless steel or Ecobrass process valves with stainless steel or polymer actuators. Modular design. Hygienic design, insensitive to dirt. Quick and easy maintenance. Simple and sturdy: an ideal choice for virtually all media with a viscosity of 600 mm2/s. High chemical and thermal resistance. Sustainable thanks to extended life cycle and easier repairs. Sustainable in production thanks to the use of alternative materials

FestoMFR # VZXASKU # YLSK6TSJXDRJRH

Type of actuationPneumatic

Mounting positionAny

Type of mountingInline installation

Valve function2/2

Flow directionNon-reversible

Medium pressure0, 3

Have questions?Chat on WhatsApp

About This Product

Festo VZXA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPoppet valve with piston drive, Poppet valve with diaphragm actuator

Type of actuationPneumatic

Mounting positionAny

Type of mountingInline installation

Line connectionClamp 1/2" to ASME BPE, Clamp 3/4" to ASME BPE, Clamp 1" to ASME BPE, Clamp 1 1/2" to ASME BPE, Clamp 2" to ASME BPE, Clamp DN13 to DIN 32676-A, Clamp DN13 to DIN 32676-B, Clamp DN20 to DIN 32676-A, C

Valve function2/2

Flow directionNon-reversible

Medium pressure0, 3

Medium pressure0, 30

Type of resetMechanical spring

Type of pilotingExternally actuated

Pneumatic connectionFemale thread G1/8

Operating pressure0.5, 1

Operating pressure5, 10

Operating pressure72.5, 145

Symbol00995580, 00995581, 00995582, 00995583, 00995586

MediumVapour, Mineral oil-based hydraulic fluid, Inert gases, Mineral oil, Water, Filtered compressed air, grade of filtration 200 µm, Neutral fluids

Direction of flowAbove valve seat, for gaseous media, Below valve seat, for gaseous and liquid media

Control of mediumOn/off operation

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Max. viscosity600

Media temperature-30, 230

Ambient temperature0, 60

Flow rate Kv4.6, 77.9

Outdoor applicationsWeather-protected application areas Class C1 based on IEC 60654-1

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material process valve housingCast stainless steel, Brass

Material number process valve housing1,4409, ASTM A351-CF3M, CW724R

Material sealsFluoro rubber, NBR

Material spindle sealPTFE

Material seat sealPEEK, PTFE, PTFE, modified

Product weight1096, 10700

ApprovalCRN

CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive, To EU Explosion Protection Directive (ATEX)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations, To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Certificate issuing authorityTÜV 968/V 1039.01/20

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6...T3 X

Explosion ignition protection type for dustEx h IIC T80°C...T200°C X

Explosion ambient temperature0°C <= Ta <= +60°C

Safety Integrity Level (SIL)SIL 2

Probability of Failure per Hour (PFH)1.36E-7

Probability of Failure on Demand (PFD)5.95E-4

Size of drive46, 90

Stroke17, 26

Control functionClosed via reduced spring force, N/C, Double-acting, Opened via spring force, N/O, Closed via spring force, N/C

Position detectionVia mechanical indicator

Material drive housingCast stainless steel, Reinforced PA

Material number drive housing1,4408

Storage temperature-10, 60

Degree of protectionIP65, IP67

Material piston rodHigh-alloy stainless steel

Material coverCast stainless steel, Reinforced PA
