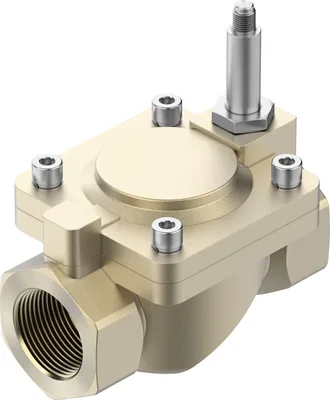

FESTO VZWM-L-M22C-G112-F5

Solenoid valve. Brass or stainless steel casting design. Electrical connection via solenoid armature tube. Comprehensive range of coils. Coil can be ordered separately

FESTOMFR # VZWM-L-M22C-G112-F5SKU # CEY-937FC781EE61

DesignDiaphragm valve, servo-controlled

Type of actuationElectrical

Sealing principleSoft

Mounting positionPreferably upright

Type of mountingInline installation

Connection Process valveG1 1/2

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Brass or stainless steel casting design. Electrical connection via solenoid armature tube. Comprehensive range of coils. Coil can be ordered separately

FESTO VZWM-L-M22C-G112-F5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDiaphragm valve, servo-controlled

Type of actuationElectrical

Sealing principleSoft

Mounting positionPreferably upright

Type of mountingInline installation

Connection Process valveG1 1/2

Electrical connectionSolenoid coil type MH-... , coil can be ordered as an accessory

Nominal size40

Valve function2/2-way, single solenoid, closed

Flow directionNon-reversible

MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids

Medium pressure,valve for liquid media0.07, 0.6

Medium pressure,valve for liquid media0.7, 6

Medium pressure,valve for liquid media10.15, 87

Medium pressure,valve for gaseous media0.07, 1

Medium pressure,valve for gaseous media0.7, 10

Medium pressure,valve for gaseous media10.15, 145

Burst pressure4

Burst pressure40

Burst pressure580

Overload pressure4

Overload pressure40

Overload pressure580

Pressure difference0.07

Pressure difference0.7

Pressure difference10.15

Type of pilotingPiloted

Symbol00995681

Max. viscosity22

Media temperature-10, 60

Media temperature for fluids5, 50

Ambient temperature-10, 60

Flow rate Kv27.4

Standard nominal flow rate (standardised to DIN 1343)26400

Switching time on26

Switch-on time for fluids1400

Switching time off20

Switch-off time for fluids2000

b value0.67

C value82

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingBrass

Material number housing2,0402

Material sealsNBR

Material plunger tubeHigh-alloy steel

Product weight2570

CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive

UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations

Corrosion resistance class CRC1 - Low corrosion stress

Max. tightening torque for cover screw30

Max. tightening torque for connecting thread540

Max. tightening torque for coil fastening2

Accessories 7

Genuine accessories that can be used with the FESTO VZWM-L-M22C-G112-F5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MH-2-230VAC-PA	Solenoid coil · Electrical accessories
MSSD-N	Plug socket · Electrical accessories
MH-2-24VDC-PA	Solenoid coil · Electrical accessories
HRM-3	Mounting bracket · Mounting accessories
MH-2-110VAC-PA	Solenoid coil · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
