How can I get a price quote for FESTO VZWM-L-M22C-G1-F5-R1?

You can request a fast quote for FESTO VZWM-L-M22C-G1-F5-R1 from Yılsa Engineering. Reference part number CEY-937FC781EE5B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VZWM-L-M22C-G1-F5-R1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VZWM-L-M22C-G1-F5-R1 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VZWM-L-M22C-G1-F5-R1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

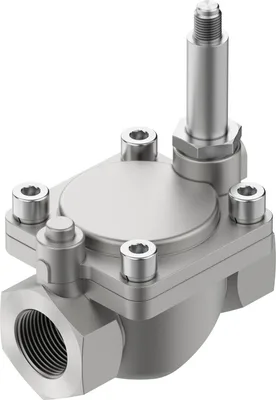

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VZWM-L-M22C-G1-F5-R1

Solenoid valve. Brass or stainless steel casting design. Electrical connection via solenoid armature tube. Comprehensive range of coils. Coil can be ordered separately

FESTOMFR # VZWM-L-M22C-G1-F5-R1SKU # CEY-937FC781EE5B

DesignDiaphragm valve, servo-controlled

Type of actuationElectrical

Sealing principleSoft

Mounting positionPreferably upright

Type of mountingInline installation

Connection Process valveG1

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Brass or stainless steel casting design. Electrical connection via solenoid armature tube. Comprehensive range of coils. Coil can be ordered separately

FESTO VZWM-L-M22C-G1-F5-R1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDiaphragm valve, servo-controlled

Type of actuationElectrical

Sealing principleSoft

Mounting positionPreferably upright

Type of mountingInline installation

Connection Process valveG1

Electrical connectionSolenoid coil type MH-... , coil can be ordered as an accessory

Nominal size25

Valve function2/2-way, single solenoid, closed

Flow directionNon-reversible

MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids

Medium pressure,valve for liquid media0.05, 0.6

Medium pressure,valve for liquid media0.5, 6

Medium pressure,valve for liquid media7.25, 87

Medium pressure,valve for gaseous media0.05, 1

Medium pressure,valve for gaseous media0.5, 10

Medium pressure,valve for gaseous media7.25, 145

Burst pressure4

Burst pressure40

Burst pressure580

Overload pressure3.5

Overload pressure35

Overload pressure507.5

Pressure difference0.05

Pressure difference0.5

Pressure difference7.25

Type of pilotingPiloted

Symbol00995681

Max. viscosity22

Media temperature-10, 60

Media temperature for fluids5, 50

Ambient temperature-10, 60

Flow rate Kv10.7

Standard nominal flow rate (standardised to DIN 1343)11700

Switching time on15

Switch-on time for fluids300

Switching time off12

Switch-off time for fluids950

b value0.57

C value41

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingCast stainless steel

Material number housing1,4581

Material sealsNBR

Material plunger tubeHigh-alloy steel

Product weight1100

CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive

UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations

Corrosion resistance class CRC3 - high corrosion stress

Max. tightening torque for cover screw30

Max. tightening torque for connecting thread350

Max. tightening torque for coil fastening2

Accessories 7

Genuine accessories that can be used with the FESTO VZWM-L-M22C-G1-F5-R1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MSSD-N	Plug socket · Electrical accessories
MH-2-24VDC-PA	Solenoid coil · Electrical accessories
MH-2-110VAC-PA	Solenoid coil · Electrical accessories
MH-2-230VAC-PA	Solenoid coil · Electrical accessories
HRM-2	Mounting bracket · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
