How can I get a price quote for FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50?

You can request a fast quote for FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50 from Yılsa Engineering. Reference part number CEY-937FC781B02B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

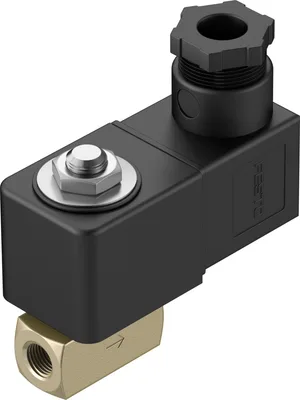

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50

Solenoid valve. No differential pressure required. Versatile connection options. High pressure range. Directly actuated function

FESTOMFR # VZWD-L-M22C-M-G18-10-V-2AP4-50SKU # CEY-937FC781B02B

DesignDirectly actuated poppet valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. No differential pressure required. Versatile connection options. High pressure range. Directly actuated function

FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDirectly actuated poppet valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/8

Electrical connectionPlug, To EN 175301-803, Square design

Nominal size1

Valve function2/2-way, single solenoid, closed

Manual overrideNone

Flow directionNon-reversible

MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request

Nominal pressure PN50

Pressure difference0

Characteristic coil data110 V AC: 50/60 Hz, pick-up power 10.5 VA, holding power 8.0 VA

Insulation material classF

Permissible voltage fluctuations+/-10%

Duty cycle100%

Type of resetMechanical spring

Type of pilotingDirect

Symbol00992979

Medium pressure0, 5

Medium pressure0, 50

Medium pressure0, 725

Max. viscosity22

Media temperature-10, 80

Ambient temperature-10, 35

Leakage rate to EN 12266-1A

Flow rate Kv0.06

Standard nominal flow rate (standardised to DIN 1343)60

Switching time on25

Switching time off10

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingBrass

Material number housingCW614N

Material sealsFluoro rubber

Material plunger tubeHigh-alloy steel

Product weight300

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Degree of protectionIP65

Corrosion resistance class CRC1 - Low corrosion stress

Max. tightening torque for connecting thread10

Max. tightening torque for coil fastening2

Accessories 15

Genuine accessories that can be used with the FESTO VZWD-L-M22C-M-G18-10-V-2AP4-50 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
KMC-1-24DC-2,5-LED	Connecting cable · Connecting cables
KMC-1-230AC-2,5	Connecting cable · Connecting cables
KMC-1-24DC-5-LED	Connecting cable · Connecting cables
KMC-1-230AC-5	Connecting cable · Connecting cables
KMC-1-24-10-LED	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
