How can I get a price quote for Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1?

You can request a fast quote for Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1 from Yılsa Engineering. Reference part number YLSJL4GWYJV31G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

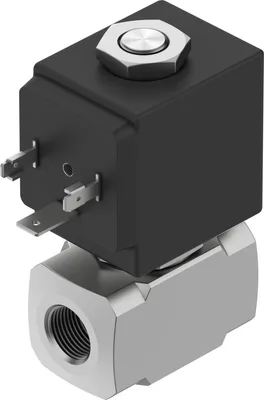

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1

Solenoid valve. Large pressure range for flexible applications. Reliable, directly actuated poppet valve. Operation without differential pressure possible. Versatile use, including in vacuum technology. High temperature range of the medium up to 140 °C

FestoMFR # VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1SKU # YLSJL4GWYJV31G

DesignDirectly actuated poppet valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/4

Have questions?Chat on WhatsApp

About This Product

Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDirectly actuated poppet valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/4

Electrical connectionPlug, To EN 175301-803, Square design

Nominal size3

Valve function2/2-way, single solenoid, closed

Manual overrideNone

Flow directionNon-reversible

MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request

Pressure difference0

Characteristic coil data220/230 V AC: 50/60 Hz, pick-up power 20.0 VA, holding power 15.0 VA

Insulation material classF

Permissible voltage fluctuations+15% / -10%

Duty cycle100%

Type of resetMechanical spring

Type of pilotingDirect

Symbol00992979

Medium pressure0, 1.5

Medium pressure0, 15

Medium pressure0, 217.5

Max. viscosity25

Media temperature-10, 140

Ambient temperature-10, 80

Flow rate Kv0.25

Switching time on8

Switching time off25

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Material number housing1,4305

Material sealsFluoro rubber

Product weight360

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Degree of protectionIP65

Corrosion resistance class CRC3 - high corrosion stress

Accessories 1

Genuine accessories that can be used with the Festo VZWD-B-L-M22C-M-G14-30-V-30-3A-A1-15-R1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
