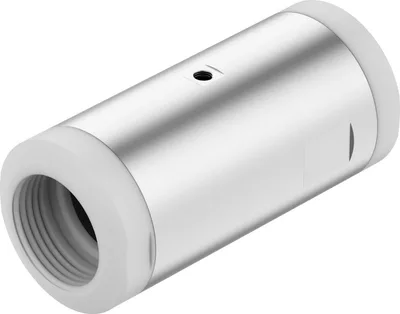

Festo VZQA-C-M22U-50-GG-ALPOME-2

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VZQA-C-M22U-50-GG-ALPOME-2

Pinch valve. Modular design. Quick and easy replacement of the diaphragm. Sustainable thanks to extended life cycle and easier repairs. For critical, abrasive and viscous media. Easy-to-clean design. Flow direction is freely selectable. Versions with end-position sensing

FestoMFR # VZQA-C-M22U-50-GG-ALPOME-2SKU # YLSVBH5LWQZERHU
DesignPinch valve, pneumatically actuated
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveG2
Share
Have questions?Chat on WhatsApp

About This Product

Pinch valve. Modular design. Quick and easy replacement of the diaphragm. Sustainable thanks to extended life cycle and easier repairs. For critical, abrasive and viscous media. Easy-to-clean design. Flow direction is freely selectable. Versions with end-position sensing

Festo VZQA-C-M22U-50-GG-ALPOME-2

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

DesignPinch valve, pneumatically actuated
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveG2
Nominal size DN50
Valve function2/2-way, single solenoid, open
Flow directionReversible
Medium pressure0, 0.2
Medium pressure0, 2
Medium pressure0, 29
Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media fl
Operating pressure0, 0.45
Operating pressure0, 4.5
Operating pressure0, 65.25
Nominal pressure PN10
Differential pressure0.25
Differential pressure2.5
Differential pressure36.25
Burst pressure1.6
Burst pressure16
Burst pressure232
Overload pressure0.78
Overload pressure7.8
Overload pressure113.1
Type of resetRebound resilience
Type of pilotingExternally actuated
Auxiliary pilot air port 12G1/8
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]
Symbol00995245
MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water
Max. viscosity4000
Media temperature-5, 100
Ambient temperature-5, 60
Storage temperature5, 20
Flow rate Kv72
Switching time on200
Switching time off1000
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Material housingWrought aluminium alloy
Material housing coverPOM
Material sealsVMQ
Material shut-off elementEPDM
Product weight2064
Suitable for use with foodSee supplementary material information
Material bowlDie-cast aluminium
