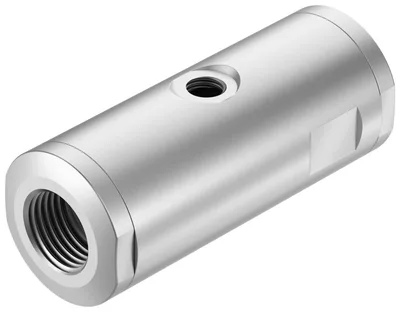

FESTO VZQA-C-M22U-15-GG-V4V4E-4

Pinch valve. Modular design. Quick and easy replacement of the diaphragm. Sustainable thanks to extended life cycle and easier repairs. For critical, abrasive and viscous media. Easy-to-clean design. Flow direction is freely selectable. Versions with end-position sensing

FESTOMFR # VZQA-C-M22U-15-GG-V4V4E-4SKU # CEY-937FC781DE11

DesignPinch valve, pneumatically actuated

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/2

Have questions?Chat on WhatsApp

About This Product

FESTO VZQA-C-M22U-15-GG-V4V4E-4

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPinch valve, pneumatically actuated

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/2

Nominal size DN15

Valve function2/2-way, single solenoid, open

Flow directionReversible

Medium pressure0, 0.4

Medium pressure0, 4

Medium pressure0, 58

Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media fl

Operating pressure0.1, 0.65

Operating pressure1, 6.5

Operating pressure14.5, 94.25

Nominal pressure PN10

Differential pressure0.25

Differential pressure2.5

Differential pressure36.25

Burst pressure1.6

Burst pressure16

Burst pressure232

Overload pressure0.78

Overload pressure7.8

Overload pressure113.1

Type of resetRebound resilience

Type of pilotingExternally actuated

Auxiliary pilot air port 12G1/8

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]

Symbol00995245

MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water

Max. viscosity4000

Media temperature-5, 100

Ambient temperature-5, 60

Storage temperature5, 20

Flow rate Kv5

Switching time on250

Switching time off250

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Material housingHigh-alloy stainless steel

Material number housing1,4404

Material housing coverHigh-alloy stainless steel

Material sealsFluoro rubber

Material shut-off elementEPDM

Product weight431

Suitable for use with foodSee supplementary material information

Material bowlPA6

Accessories 1
