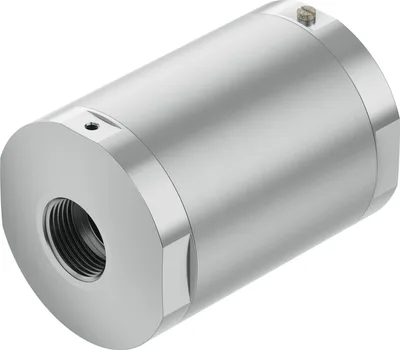

Festo VZQA-C-M22C-25-GG-V2V4E-5-T28

Pinch valve. Modular design. Quick and easy replacement of the diaphragm. Sustainable thanks to extended life cycle and easier repairs. For critical, abrasive and viscous media. Easy-to-clean design. Flow direction is freely selectable. Versions with end-position sensing

FestoMFR # VZQA-C-M22C-25-GG-V2V4E-5-T28SKU # YLSJFDO7ORFV4D

DesignPinch valve, pneumatically actuated

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1

Have questions?Chat on WhatsApp

About This Product

Festo VZQA-C-M22C-25-GG-V2V4E-5-T28

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPinch valve, pneumatically actuated

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1

Nominal size DN25

Valve function2/2-way, single solenoid, closed

Flow directionReversible

Medium pressure0, 0.5

Medium pressure0, 5

Medium pressure0, 72.5

Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media fl

Operating pressure0.35, 0.6

Operating pressure3.5, 6

Operating pressure50.75, 87

Nominal pressure PN10

Burst pressure1.6

Burst pressure16

Burst pressure232

Type of resetMechanical spring

Type of pilotingExternally actuated

Auxiliary pilot air port 12M5

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]

Symbol00992981

MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water

Max. viscosity4000

Media temperature-5, 60

Ambient temperature-5, 60

Storage temperature5, 20

Flow rate Kv18

Switching time on250

Switching time off400

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingHigh-alloy stainless steel

Material number housing1,4301

Material housing coverHigh-alloy stainless steel

Material number housing cover1.4404 / AISI 316L

Material sealsFluoro rubber

Material shut-off elementEPDM

Product weight2068

Suitable for use with foodSee supplementary material information

Material bowlPPS
