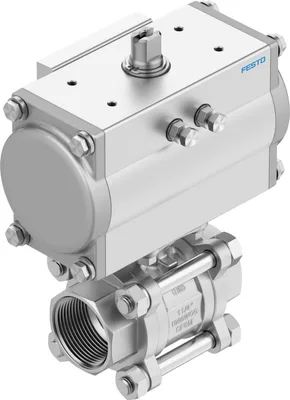

Festo VZBE-A-3-T-63-T-2-F0710-V15V16-PA160

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VZBE-A-3-T-63-T-2-F0710-V15V16-PA160

Ball valve unit. Ball valve actuator unit with double-acting quarter turn actuatorDFPD. Stainless steel ball valve. NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully opened or closed in both directions

FestoMFR # VZBE-A-3-T-63-T-2-F0710-V15V16-PA160SKU # YLS1EE2BKW9NM4A

DesignQuarter turn actuator

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve3 NPT

Share

Have questions?Chat on WhatsApp

About This Product

Ball valve unit. Ball valve actuator unit with double-acting quarter turn actuatorDFPD. Stainless steel ball valve. NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully opened or closed in both directions

Festo VZBE-A-3-T-63-T-2-F0710-V15V16-PA160

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignQuarter turn actuator

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve3 NPT

Switching position indicatorSlot direction = flow direction

Flange hole patternF0710

Nominal size DN80

Valve function2/2

Flow directionReversible

Operating pressure0.55, 0.8

Operating pressure5.5, 8

Operating pressure79.75, 116

Nominal pressure PN63

Breakaway torque at differential pressure, nominal pressure, process valve PN103

Based on standardISO 5211

Symbol00991921

MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-10, 200

Flow rate Kv995

Max. surface temperature assembly+105°C...+280°C, T4...T2

explosion group assemblyIIC, IIIC

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingCast stainless steel

Material number housing1,4408

Material seat sealPTFE

Material sealsFluoro rubber, PTFE

Material ballHigh-alloy stainless steel

Material number ball1,4401

Material shaftHigh-alloy stainless steel

Product weight13490

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Explosion ambient temperature-10°C <= Ta <= +80°C

Corrosion resistance class CRC1 - Low corrosion stress
