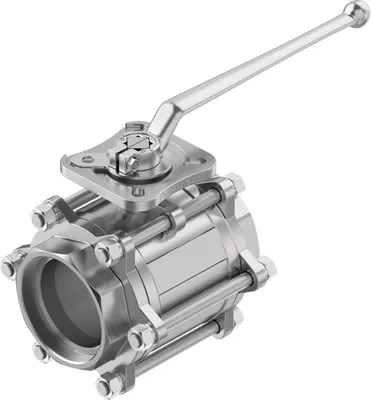

Festo VZBE-4-WA-63-T-2-F1012-M-V15V15
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Design2-way ball valve with hand lever
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
About This Product
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Festo VZBE-4-WA-63-T-2-F1012-M-V15V15
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Design2-way ball valve with hand lever
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
Switching position indicatorSlot direction = flow direction
Flange hole patternF10, F12
Inside diameter96
Nominal size DN100
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN138
Based on standardISO 5211
Symbol00991458
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20, 200
Flow rate Kv1637
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408/CF8M
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408/CF8M
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight19900
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
Accessories 122
Genuine accessories that can be used with the Festo VZBE-4-WA-63-T-2-F1012-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| DAPS-0180-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0480-090-R-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS1-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS2-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS3-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS4-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-160- | Quarter turn actuator · Connection accessories | |
| DFPD-240- | Quarter turn actuator · Connection accessories | |
| DFPD-300- | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-180-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-135-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-120-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-180-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-135-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-120-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S27-S22-27 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S27-S22-27-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S36-S22-36 | Reducing sleeve · Mounting accessories | |
| DFPD-240-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS35-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS45-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS35-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS45-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories |
Related Products
View Details
Festo
VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
SKU #YLSEBCQMW3AHGB
View Details
Festo
VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
MFR #VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
SKU #YLSNAGPHAAFJ8OO
View Details
Festo
VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16
SKU #YLSUKMWZPL1IBYA
View Details
Festo
VZXF-L-M22C-M-B-N12-130-M1-V4B2T-50-40
MFR #VZXF-L-M22C-M-B-N12-130-M1-V4B2T-50-40
SKU #YLSTJ4HGDDOMJGB
View Details
Festo
VZXF-L-M22C-M-B-G12-130-M1-V4B2T-50-40
MFR #VZXF-L-M22C-M-B-G12-130-M1-V4B2T-50-40
SKU #YLSLAZLGRMGJSZ
View Details
Festo
VZXF-L-M22C-M-A-G12-130-V4B2V-50-V
MFR #VZXF-L-M22C-M-A-G12-130-V4B2V-50-V
SKU #YLSQMMWWM3AHLVS
View Details
Festo
VZXF-L-M22C-M-B-G34-160-H3B1V-50-16-C
MFR #VZXF-L-M22C-M-B-G34-160-H3B1V-50-16-C
SKU #YLSSCGAL6WZ4CJD
View Details
Festo
VZXF-L-M22C-M-B-G34-160-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-B-G34-160-M1-H3B1T-50-16
SKU #YLSL5TDNSFW6EN6
View Details
Festo
VZXF-L-M22C-M-A-G34-160-H3B1V-50-V
MFR #VZXF-L-M22C-M-A-G34-160-H3B1V-50-V
SKU #YLSRMO1UJWI8TLA
Featured Products
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Related Searches
Festo VZBE-4-WA-63-T-2-F1012-M-V15V15 priceFesto VZBE-4-WA-63-T-2-F1012-M-V15V15 quotebuy Festo VZBE-4-WA-63-T-2-F1012-M-V15V15VZBE-4-WA-63-T-2-F1012-M-V15V15 priceVZBE-4-WA-63-T-2-F1012-M-V15V15 stock availabilityFesto spare partsFesto VZBE-4-WA-63-T-2-F1012-M-V15V15 equivalentFesto VZBE-4-WA-63-T-2-F1012-M-V15V15 specifications
