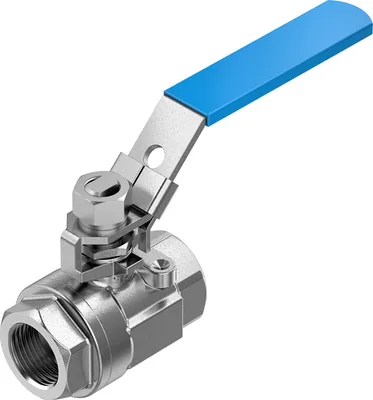

Festo VZBE-3/4-T-63-D-2-M-V15V15

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VZBE-3/4-T-63-D-2-M-V15V15

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

FestoMFR # VZBE-3/4-T-63-D-2-M-V15V15SKU # YLS8KTCKOLG0KH
Design2-way ball valve with hand lever
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve3/4 NPT
Share
Have questions?Chat on WhatsApp

About This Product

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

Festo VZBE-3/4-T-63-D-2-M-V15V15

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Design2-way ball valve with hand lever
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve3/4 NPT
Switching position indicatorSlot direction = flow direction
Inside diameter20
Nominal size DN20
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN7.5
Based on standardASME B1.20.1
Symbol00991458
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20, 200
Flow rate Kv59
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1,4408
Material seat sealPTFE
Material sealsPTFE
Material ballCast stainless steel
Material number ball1,4408
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight500
ApprovalCRN
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC3 - high corrosion stress
