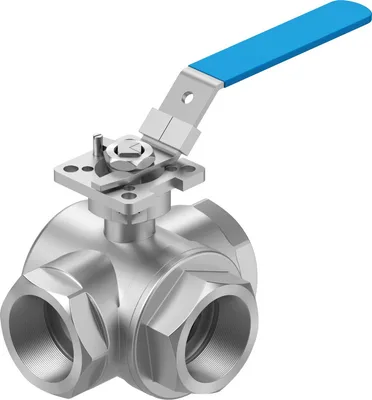

Festo VZBE-2-T-63-F-3L-F0507-M-V15V15

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

FestoMFR # VZBE-2-T-63-F-3L-F0507-M-V15V15SKU # YLSZH4VCCH2UXYI

DesignL-bore

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve2 NPT

Have questions?Chat on WhatsApp

About This Product

Festo VZBE-2-T-63-F-3L-F0507-M-V15V15

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignL-bore

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve2 NPT

Switching position indicatorSlot direction = flow direction

Flange hole patternF0507

Inside diameter38.1

Nominal size DN50

Valve function3/2

Flow directionReversible

Nominal pressure PN63

Breakaway torque at differential pressure, nominal pressure, process valve PN85

Based on standardISO 5211

Symbol00991888

MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids

Media temperature-20, 200

Flow rate Kv L hole20.7

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingCast stainless steel

Material number housing1,4408

Material seat sealPTFE

Material sealsPTFE

Material ballCast stainless steel

Material number ball1,4408

Material shaftHigh-alloy stainless steel

Material number shaft1,4401

Product weight5800

ApprovalCRN

CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Corrosion resistance class CRC4 - Very high corrosion stress

Accessories 8

Genuine accessories that can be used with the Festo VZBE-2-T-63-F-3L-F0507-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DARQ-R-A-S17-S14-17	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S14-22	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S14-17-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S14-22-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S14-17-P10	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F10S22-F05S14-R1	Mounting kit · Mounting accessories
DARQ-K-V-F07S17-F05S14-R1	Mounting kit · Mounting accessories
DARQ-R-A-S27-S14-27	Reducing sleeve · Mounting accessories
