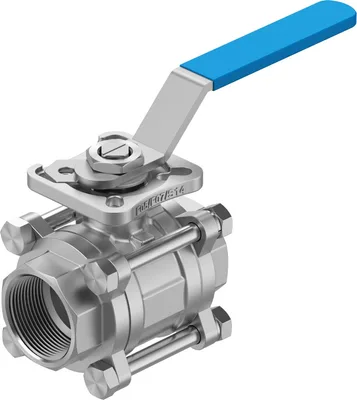

Festo VZBE-11/2-T-63-T-2-F0507-M-V15V15

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

FestoMFR # VZBE-11/2-T-63-T-2-F0507-M-V15V15SKU # YLSBV6QUNXMBM4N

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve1 1/2 NPT

Have questions?Chat on WhatsApp

About This Product

Festo VZBE-11/2-T-63-T-2-F0507-M-V15V15

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve1 1/2 NPT

Switching position indicatorSlot direction = flow direction

Flange hole patternF0507

Inside diameter38

Nominal size DN40

Valve function2/2

Flow directionReversible

Nominal pressure PN63

Breakaway torque at differential pressure, nominal pressure, process valve PN25

Based on standardISO 5211

Symbol00991458

MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids

Media temperature-20, 200

Flow rate Kv61.6

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingCast stainless steel

Material number housing1,4408

Material seat sealPTFE, modified

Material sealsFluoro rubber, PTFE

Material ballCast stainless steel

Material number ball1,4408

Material shaftHigh-alloy stainless steel

Material number shaft1,4401

Product weight2600

ApprovalCRN

CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Corrosion resistance class CRC4 - Very high corrosion stress

Accessories 8

Genuine accessories that can be used with the Festo VZBE-11/2-T-63-T-2-F0507-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DARQ-R-A-S17-S14-17	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S14-22	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S14-17-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S14-22-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S14-17-P10	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F10S22-F05S14-R1	Mounting kit · Mounting accessories
DARQ-K-V-F07S17-F05S14-R1	Mounting kit · Mounting accessories
DARQ-R-A-S27-S14-27	Reducing sleeve · Mounting accessories
