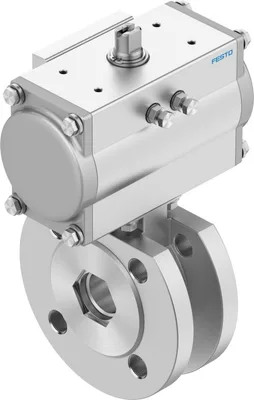

Festo VZBC-A-100-FF-16-22-F0710-V4V4T-PA240

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VZBC-A-100-FF-16-22-F0710-V4V4T-PA240

Ball valve unit. Ball valve actuator unit with double- or single-acting quarter turn actuator DAPS. Stainless steel ball valve in compact design. NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully opened or closed in both directions. Use in zone 1, 21, 2, 22

FestoMFR # VZBC-A-100-FF-16-22-F0710-V4V4T-PA240SKU # YLSADBHU4VDJOC3
Design2-way ball valve, Quarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveFlange to EN 1092-1
Share
Have questions?Chat on WhatsApp

About This Product

Ball valve unit. Ball valve actuator unit with double- or single-acting quarter turn actuator DAPS. Stainless steel ball valve in compact design. NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully opened or closed in both directions. Use in zone 1, 21, 2, 22

Festo VZBC-A-100-FF-16-22-F0710-V4V4T-PA240

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Design2-way ball valve, Quarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveFlange to EN 1092-1
Switching position indicatorSlot direction = flow direction
Flange hole patternF0710
Nominal size DN100
Valve function2/2
Flow directionReversible
Operating pressure0.55, 0.8
Operating pressure5.5, 8
Operating pressure79.75, 116
Nominal pressure PN16
Breakaway torque at differential pressure, nominal pressure, process valve PN148
Based on standardISO 5211
Symbol00991921
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10, 200
Flow rate Kv1414
Max. surface temperature assembly+105°C...+280°C, T4...T2
explosion group assemblyIIC, IIIC
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingHigh-alloy stainless steel
Material number housing1,4408
Material seat sealPTFE
Material sealsPTFE-reinforced
Material ballHigh-alloy stainless steel
Material number ball1,4408
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight27570
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Explosion ambient temperature-10°C <= Ta <= +80°C
Corrosion resistance class CRC1 - Low corrosion stress
