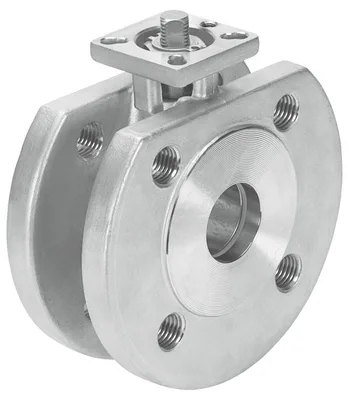

FESTO VZBC-40-FF-40-22-F0507-V4V4T

Ball valve. Automatable 2-way compact flanged ball valve. Stainless steel design. Short installation length. Blow-out proof shaft. Manual operation possible using hand lever. Flange to DIN 1092-1. Mounting flange to ISO 5211. Use in zone 1, 21, 2, 22

FESTOMFR # VZBC-40-FF-40-22-F0507-V4V4TSKU # CEY-937FC781AFB2

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveRing housing with threaded flange

Have questions?Chat on WhatsApp

About This Product

FESTO VZBC-40-FF-40-22-F0507-V4V4T

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveRing housing with threaded flange

Switching position indicatorSlot direction = flow direction

Flange hole patternF05, F07

Inside diameter38

Nominal size DN40

Valve function2/2

Manual overrideNone

Flow directionReversible

Nominal pressure PN40

Actuating torque35

Based on standardISO 5211

Symbol00991458

MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request

Media temperature-10, 200

Flow rate Kv170

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingHigh-alloy stainless steel

Material number housing1,4408

Material sealsPTFE, PTFE-reinforced

Material ballHigh-alloy stainless steel

Material number ball1,4408

Material shaftHigh-alloy stainless steel

Material number shaft1,4401

Product weight4400

CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive

UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Corrosion resistance class CRC3 - high corrosion stress

Accessories 8

Genuine accessories that can be used with the FESTO VZBC-40-FF-40-22-F0507-V4V4T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DARQ-R-A-S17-S14-17	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S14-22	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S14-17-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S14-22-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S14-17-P10	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F10S22-F05S14-R1	Mounting kit · Mounting accessories
DARQ-K-V-F07S17-F05S14-R1	Mounting kit · Mounting accessories
DARQ-R-A-S27-S14-27	Reducing sleeve · Mounting accessories
