How can I get a price quote for Festo VZ-3-PK-3?

You can request a fast quote for Festo VZ-3-PK-3 from Yılsa Engineering. Reference part number CEY-937FC782782F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VZ-3-PK-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VZ-3-PK-3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VZ-3-PK-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

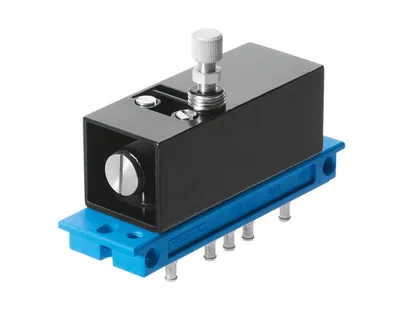

Festo VZ-3-PK-3

Time delay valve. Complete system offering control components with all the functions required for pneumatic sequence control. For control cabinet installation. Fast replacement of components

FestoMFR # VZ-3-PK-3SKU # CEY-937FC782782F

Nominal size2

Type of actuationPneumatic

DesignPoppet valve with spring return

Symbol00991130

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Have questions?Chat on WhatsApp

About This Product

Time delay valve. Complete system offering control components with all the functions required for pneumatic sequence control. For control cabinet installation. Fast replacement of components

Festo VZ-3-PK-3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size2

Type of actuationPneumatic

DesignPoppet valve with spring return

Symbol00991130

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Operating pressure2.5, 8

Standard nominal flow rate (standardised to DIN 1343)90

Adjustable delay time0.25, 5

Pause duration for reset55

Repetition accuracy of time setting± 0.5 s

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

LABS (PWIS) conformityVDMA24364-B1/B2-L

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight150

Type of mountingOn mounting frame

Pneumatic connectionPK-3

Material housingDie-cast zinc

Accessories 4

Genuine accessories that can be used with the Festo VZ-3-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NRRQ-2N	Mounting frame · Mounting accessories
NRW-9/1,5-B	Mounting bracket · Mounting accessories
DIN 84-M6X18-4.8	Socket head screw · Mounting accessories
DIN 84-M6X12-4.8	Socket head screw · Mounting accessories
