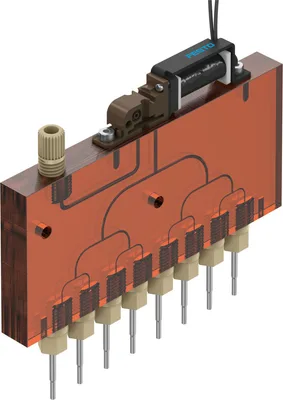

Festo VTOI-V8-30D3-U14-08-V-S015-1

Distributor. One valve controller for distributing to 8 dispensing channels. Grid dimension 9 mm – ideal for microwell plates. Simple design with side-by-side mounting for increased throughput. Only a few components are needed to form a complete system. Suitable for aggressive liquids

FestoMFR # VTOI-V8-30D3-U14-08-V-S015-1SKU # YLSU1T9NTHKCR

Valve function2/2-way, single solenoid, closed

Operating pressure0, 0.1

Operating pressure0, 1

Operating pressure0, 14.5

Nominal size0.8

Nominal width of dosing needle0.3

Have questions?Chat on WhatsApp

About This Product

Festo VTOI-V8-30D3-U14-08-V-S015-1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2/2-way, single solenoid, closed

Operating pressure0, 0.1

Operating pressure0, 1

Operating pressure0, 14.5

Internal volume10 µl fluid chamber valve, 178 µl distributor block with valve, needle and fittings

Nominal size0.8

Nominal width of dosing needle0.3

Length of dosing needle30

Grid dimension9

Sealing principleSoft

Mounting positionVertical

Type of resetMechanical spring

Type of pilotingDirect

Suitability for vacuumNo

Min. dosing volume1

Note on dosing volumeDepends on configuration, environment and application

Typical dosing precision≤5% tip-to-tip CV, ≤ 3% Intra-run CV

Note on dosing precisionDepends on configuration, environment and application

Max. switching frequency4

Note on switching frequencyDependent on the ambient temperature and installation state

Switching time on7

Note on switching time onDepends on configuration, environment and application

Switching time off2

Note on switching time offDepends on configuration, environment and application

Duty cycle100%

Electrical power consumption1.8

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

MediumLiquid media, Gaseous media

Note on the mediumMaximum particle size 20 µm

Instructions on useSee application note (available on the Support Portal at festo.com)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature5, 40

Media temperature5, 50

Degree of protectionIP30

Note on degree of protectionIn mounted state

Ambient temperature5, 40

Product weight52

Electrical connectionOpen end

Cable length0.15

Wire endsStripped

Conductor nominal cross sectionAWG28

Type of mountingVia through-hole for M3 screw

Fluid connectionFemale thread 1/4-28 UNF-2B

Note on fluid connectionFitting enclosed for tubing with 3 mm outside diameter

Material of dosing needleHigh-alloy stainless steel

Material number of dosing needle1,4404

Note on materialsRoHS compliant

Material in contact with the mediumPPS, High-alloy stainless steel

Type of actuationElectrical

Nominal altitude of use<= 2000 m NHN

Relative air humidityNon-condensing

Accessories 6

Genuine accessories that can be used with the Festo VTOI-V8-30D3-U14-08-V-S015-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PFAN-3X0,5-NT	Plastic tubing · Tubes
LRP-1/4-0,7	Precision pressure regulator · Connection accessories
PUN-H-3X0,5-BL	Plastic tubing · Tubing
SPAN-B2R-Q4-PNLK-PNVBA-L1	Pressure sensor · Connection accessories
EHAM-MA-E19-25-C14	Adapter plate kit · Mounting accessories
