How can I get a price quote for Festo VSNC-FK-M32C-RD-G18-1C1-S?

You can request a fast quote for Festo VSNC-FK-M32C-RD-G18-1C1-S from Yılsa Engineering. Reference part number YLS1LUJJXINCH1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSNC-FK-M32C-RD-G18-1C1-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSNC-FK-M32C-RD-G18-1C1-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSNC-FK-M32C-RD-G18-1C1-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

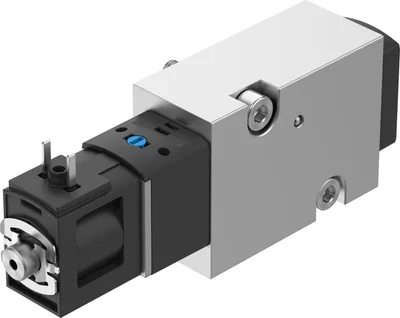

Festo VSNC-FK-M32C-RD-G18-1C1-S

Solenoid valve. Namur connection pattern to VDI/VDE 3845. Compact, cost-effective, powerful. Especially suitable for rotary actuators DAPS and DFPD with connection pattern according to VDI/VDE 3845. Extended temperature range. Electrical connection with plug pattern type form C, according to EN 175301-803. Solenoid coil 24 V integrated. Excellent value for money

FestoMFR # VSNC-FK-M32C-RD-G18-1C1-SSKU # YLS1LUJJXINCH1

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width25.5

pneumatic working portConnection pattern to NAMUR

Operating voltage24 V DC

Operating pressure0.25, 0.8

Have questions?Chat on WhatsApp

About This Product

Festo VSNC-FK-M32C-RD-G18-1C1-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width25.5

Standard nominal flow rate (standardised to DIN 1343)400

pneumatic working portConnection pattern to NAMUR

Operating voltage24 V DC

Operating pressure0.25, 0.8

Operating pressure2.5, 8

DesignPiston slide with sealing ring

Type of resetMechanical spring, Pneumatic spring

Degree of protectionIP65

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardVDI/VDE 3845 (NAMUR)

Manual overrideDetenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00997362

lapOverlap

b value0.3

C value2.1

Standard nominal flow rate, exhaust return 4->3100

Switching time off50

Switching time on50

Duty cycle100%

Characteristic coil data24 V DC: 2.4 W

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Media temperature-20, 50

Ambient temperature-20, 50

Product weight220

Electrical connectionType C

Type of mountingWith through-hole

Breather connectionNot ducted

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2Connection pattern to NAMUR

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4Connection pattern to NAMUR

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material coverReinforced PA

Material sealsNBR

Material housingWrought aluminium alloy

Manual override materialReinforced PA

Material pistonWrought aluminium alloy

Material screwsHigh-alloy stainless steel

Accessories 4

Genuine accessories that can be used with the Festo VSNC-FK-M32C-RD-G18-1C1-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABF-S7-F1B1P2-F	Throttle plate · General accessories
VABS-S7-S-G14-VDE1	Sub-base · General accessories
VABD-D3-SN-G14	Exhaust protection · General accessories
VAMC-B10-20-CH2	Cover cap · General accessories
