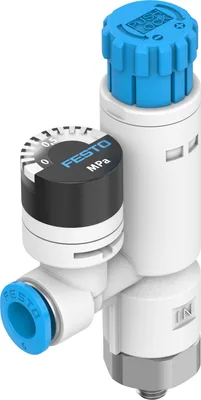

Festo VRPA-LM-M5-Q4

Pressure regulator. Regulates the operating pressure independently of the fluctuating inlet pressure. With secondary exhaust and with return flow function. Piston regulator with through pressure supply. Greater energy efficiency thanks to movement-specific pressure adjustment. Directly actuated. Available with pressure gauge. Connections: push-in connector at both ends, thread/push-in connector. Sustainable operation thanks to reduced pressure level

FestoMFR # VRPA-LM-M5-Q4SKU # YLSU3U0BFC7OUK

Pneumatic connection, port 1M5

Pneumatic connection, port 2QS-4

Type of mountingScrew-in

Ambient temperature0, 60

Material housingPBT

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo VRPA-LM-M5-Q4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Controller functionOutput pressure constant, With secondary exhausting, With return flow function

Pneumatic connection, port 1M5

Pneumatic connection, port 2QS-4

Type of mountingScrew-in

Standard nominal flow rate (standardised to DIN 1343)80

Ambient temperature0, 60

Material housingPBT

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Mounting positionAny

Type of actuationManual

Type of seal on screwed plugSealing ring

Adjustment componentRotary knob with latch

Symbol00991558

Rotatability360°/no continuous swivelling permissible

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Pressure regulation range0.1, 0.8

Pressure regulation range1, 8

Pressure regulation range14.5, 116

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Nominal torque0.8

Tolerance for nominal tightening torque±20%

Product weight29

Material screwed plugNickel-plated brass

Note on materialsRoHS compliant

Material static sealsNBR
