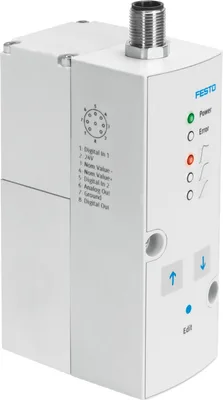

FESTO VPPM-8F-L-1-F-0L6H-V1P-S1

Proportional-pressure regulator. Piloted pressure regulator. Multi-sensor control (cascade control). Three default presets for fast commissioning. Integration in valve terminal MPA. User interface with LED displays, LCD display, adjustment/selection buttons. Integrated pressure sensor. Electrical connection via plug connector, round design, 8-pin, M12 or terminal linking. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # VPPM-8F-L-1-F-0L6H-V1P-S1SKU # CEY-937FC781CA57

Nominal size, supply8

Nominal size, exhaust7

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

DesignPiloted diaphragm regulator

Have questions?Chat on WhatsApp

About This Product

FESTO VPPM-8F-L-1-F-0L6H-V1P-S1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, supply8

Nominal size, exhaust7

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

DesignPiloted diaphragm regulator

Short circuit current ratingFor all electrical connections

Safety instructionsSafety position VPPM: if the power supply cable is interrupted, output pressure is maintained unregulated.

Symbol00995303

Reverse polarity protectionFor all electrical connections

Type of resetMechanical spring

Type of pilotingPiloted

Valve function3-way proportional pressure regulator

Display typeLED

Pressure regulation range0.006, 0.6

Pressure regulation range0.06, 6

Inlet pressure 10, 8

Inlet pressure 10, 0.8

Max. pressure hysteresis0.03

Standard nominal flow rate (standardised to DIN 1343)1750

Operational voltage range DC21.6, 26.4

Max. current consumption300

Duty cycle100%

Max. electrical power consumption7

Residual ripple10%

Switching outputPNP

Signal range analogue output0 - 10 V

Accuracy analogue output in ± %FS2

Signal range analogue input0 - 10 V

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation not possible

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E322346

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature10, 50

Degree of protectionIP65

Ambient temperature0, 60

Product weight560

Linearity1

Hysteresis0.5

Reproducibility0.5

Total accuracy1.25 %FS

Temperature cooefficient0.04

Repetition accuracy FS0.5

Electrical connectionM12, Plug

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material housingWrought aluminium alloy, anodised

Accessories 14

Genuine accessories that can be used with the FESTO VPPM-8F-L-1-F-0L6H-V1P-S1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIM-M12-8GD-2-PU	Plug socket with cable · Electrical accessories
NEBU-M12W8-K-2-N-LE8	Plug socket with cable · Electrical accessories
NEBV-M12G8-KD-3-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-2-M12G4	Connecting cable · Electrical accessories
VAME-P1-A	Bracket · Mounting accessories
VAME-P1-T	DIN rail attachment · Mounting accessories
SIM-M12-8GD-5-PU	Plug socket with cable · Electrical accessories
VABM-P1-SF-G14-2-P3	Manifold block · Connection accessories
VABM-P1-SF-G14-3-P3	Manifold block · Connection accessories
VABM-P1-SF-G14-4-P3	Manifold block · Connection accessories
NEBU-M12W8-K-5-N-LE8	Plug socket with cable · Electrical accessories
NEBV-M12G8-K-5-M12G4	Connecting cable · Electrical accessories
NEBU-M12W8-K-10-N-LE8	Plug socket with cable · Electrical accessories
SIM-M12-8GD-10-PU	Plug socket with cable · Electrical accessories
