How can I get a price quote for Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7?

You can request a fast quote for Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7 from Yılsa Engineering. Reference part number YLSVKYEECNZKK0B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

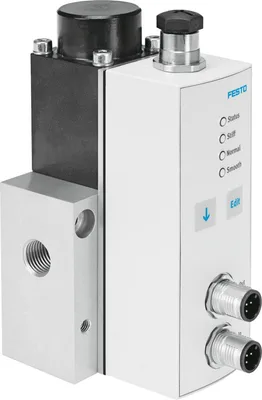

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7

Proportional-pressure regulator. For high-pressure applications. Directly actuated piston regulator. Available in three variants: flanged valve, flanged valve with external pilot air supply, in-line valve

FestoMFR # VPPL-3L-3-G14-0L40H-A4-A-S1-7SKU # YLSVKYEECNZKK0B

Nominal size, supply3

Nominal size, exhaust3

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny, Preferably upright

DesignDirectly actuated piston regulator

Have questions?Chat on WhatsApp

About This Product

Festo VPPL-3L-3-G14-0L40H-A4-A-S1-7

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, supply3

Nominal size, exhaust3

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny, Preferably upright

DesignDirectly actuated piston regulator

Short circuit current ratingNo

Max. cable length30 M

Safety instructionsSafety position VPPL: if the power supply cable is interrupted, the output pressure drops to 0 bar.

Symbol00991479

Reverse polarity protectionFor all electrical connections

Type of resetMechanical spring

Type of pilotingDirect

Valve function3-way proportional-pressure regulator, closed

Display typeLED indicator

Operating pressure5

Operating pressure50

Pressure regulation range0.04, 4

Pressure regulation range0.4, 40

Inlet pressure 10, 50

Inlet pressure 10, 5

Max. pressure hysteresis0.04

Max. pressure hysteresis0.4

Max. pressure hysteresis5.8

b value0.25

C value0.8

Standard nominal flow rate (standardised to DIN 1343)245

Standard nominal flow rate 2-3282

Switching time off654

Switching time on428

Operational voltage range DC21.6, 27.6

Duty cycle100%

Max. electrical power consumption26.7

Residual ripple10%

Signal range analogue output4 - 20 mA

Signal range analogue input4 - 20 mA

SETPOINT/ACTUAL valuesCurrent type 4-20 mA

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation not possible

Approvalc UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature5, 50

Degree of protectionIP65

Ambient temperature5, 50

Storage temperature-10, 60

Product weight1100

Linearity error in ± %FS1

Total accuracy1.5 %FS

Temperature cooefficient0.04

Repetition accuracy in ± %FS1

Electrical connection diagnostics interfaceSocket, M12, 5-pin, A-coded

Electrical connection, INPlug connector, M12, 5-pin, A-coded

Electrical connection, OUTPlug connector, M12, 5-pin, A-coded

Type of mountingWith through-hole

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4

Note on materialsRoHS compliant

Material housingAnodised wrought aluminium alloy
