How can I get a price quote for Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME?

You can request a fast quote for Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME from Yılsa Engineering. Reference part number YLSQEMECQ0DKKZM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

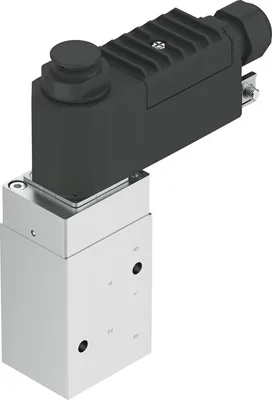

Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME

Valve. Suitable for process automation in the chemical and petrochemical industries. Suitable for outdoor use under harsh ambient conditions. Especially suitable for quarter turn actuators thanks to NAMUR flange pattern. Valve can switch between internal and external pilot air. Variants with safety functions. Variants to EU Explosion Protection Directive (ATEX)

FestoMFR # VOFC-L-M52-MY-G14-F19-18-1UK4-EX4MESKU # YLSQEMECQ0DKKZM

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width40

pneumatic working portG1/4

Operating pressure0.25, 0.8

Operating pressure2.5, 8

Have questions?Chat on WhatsApp

About This Product

Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width40

Standard nominal flow rate (standardised to DIN 1343)1030

pneumatic working portG1/4

Operating pressure0.25, 0.8

Operating pressure2.5, 8

Operating pressure36.25, 116

DesignPiston gate valve

Type of resetMechanical spring

Degree of protectionIP65

Nominal size6

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991003

Flow rate Kv pressurisation1.08

Flow rate Kv exhaust1.08

Standard nominal flow rate 2-3978

Switching time off22

Switching time on26

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:2:2]

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature-25, 60

Ambient temperature-25, 60

Product weight520

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4

Pneumatic connection, port 4G1/4

Pneumatic connection, port 5G1/4

Note on materialsRoHS compliant

Material sealsNBR

Material housingEmatal coated aluminium

Accessories 1

Genuine accessories that can be used with the Festo VOFC-L-M52-MY-G14-F19-18-1UK4-EX4ME motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
