How can I get a price quote for FESTO VN-20-H-T6-PQ4-VQ5-RO2-M?

You can request a fast quote for FESTO VN-20-H-T6-PQ4-VQ5-RO2-M from Yılsa Engineering. Reference part number CEY-937FC7820C2E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VN-20-H-T6-PQ4-VQ5-RO2-M in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VN-20-H-T6-PQ4-VQ5-RO2-M genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VN-20-H-T6-PQ4-VQ5-RO2-M?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

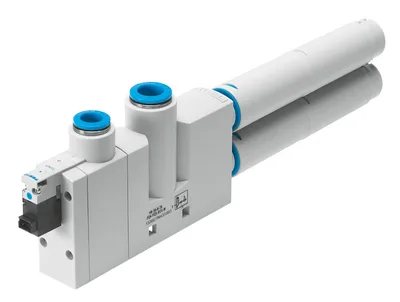

FESTO VN-20-H-T6-PQ4-VQ5-RO2-M

Vacuum generator. Can be used directly in the work space. Low cost. Maintenance-free operation and reduced noise level through an integrated, open silencer. With solenoid valve vacuum on/off

FESTOMFR # VN-20-H-T6-PQ4-VQ5-RO2-MSKU # CEY-937FC7820C2E

Nominal size, Laval nozzle2

Grid dimension24

Silencer designOpen

Mounting positionAny

Ejector characteristicStandard, high negative pressure

Manual overrideNon-detenting

Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Can be used directly in the work space. Low cost. Maintenance-free operation and reduced noise level through an integrated, open silencer. With solenoid valve vacuum on/off

FESTO VN-20-H-T6-PQ4-VQ5-RO2-M

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle2

Grid dimension24

Silencer designOpen

Mounting positionAny

Ejector characteristicStandard, high negative pressure

Manual overrideNon-detenting

Integrated functionOn/off valve, electric, Open silencer

DesignT-shape

Symbol00991492

Valve function2/2

Operating pressure for max. suction flow rate2

Operating pressure2, 8

Operating pressure for max. vacuum3.5

Max. vacuum92

Nominal operating pressure6

Max. suction flow rate against atmosphere98

Air supply time at nominal operating pressure0.24

Operational voltage range DC21.6, 26.4

Electrical power consumption1.2

Duty cycle100%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature0, 50

Sound pressure level at nominal operating pressure63

Degree of protectionIP40

Ambient temperature0, 50

Product weight215

Electrical connectionPlug

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1QS-10

Pneumatic connection, port 3Open silencer

Vacuum connectionQS-12

Material connecting threadAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced PA, Reinforced POM

Material silencerWrought aluminium alloy, POM, Polyurethane foam

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 10

Genuine accessories that can be used with the FESTO VN-20-H-T6-PQ4-VQ5-RO2-M motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VN-T6-BP-NRH	Mounting plate · Mounting accessories
UOMS-3/8	Silencer extension · Silencer
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
