How can I get a price quote for FESTO VN-14-L-T4-PQ3-VQ3-RO2-B?

You can request a fast quote for FESTO VN-14-L-T4-PQ3-VQ3-RO2-B from Yılsa Engineering. Reference part number CEY-937FC7820C97. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VN-14-L-T4-PQ3-VQ3-RO2-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VN-14-L-T4-PQ3-VQ3-RO2-B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VN-14-L-T4-PQ3-VQ3-RO2-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

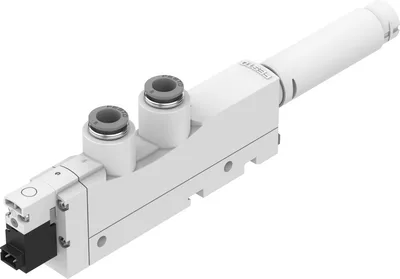

FESTO VN-14-L-T4-PQ3-VQ3-RO2-B

Vacuum generator. Can be used directly in the work space. Low cost. Maintenance-free operation and reduced noise level through an integrated, open silencer. With solenoid valve vacuum on/off

FESTOMFR # VN-14-L-T4-PQ3-VQ3-RO2-BSKU # CEY-937FC7820C97

Nominal size, Laval nozzle1.4

Grid dimension18

Silencer designOpen

Mounting positionAny

Ejector characteristicStandard, high suction volume

Manual overrideNon-detenting

Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Can be used directly in the work space. Low cost. Maintenance-free operation and reduced noise level through an integrated, open silencer. With solenoid valve vacuum on/off

FESTO VN-14-L-T4-PQ3-VQ3-RO2-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle1.4

Grid dimension18

Silencer designOpen

Mounting positionAny

Ejector characteristicStandard, high suction volume

Manual overrideNon-detenting

Integrated functionEjector pulse valve, pneumatic, On/off valve, electric, Open silencer

DesignT-shape

Symbol00991944

Valve function2/2

Operating pressure for max. suction flow rate5

Operating pressure2, 8

Nominal operating pressure6

Max. suction flow rate against atmosphere92.6

Air supply time at nominal operating pressure0.32

Operational voltage range DC21.6, 26.4

Electrical power consumption1.2

Duty cycle100%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature0, 50

Sound pressure level at nominal operating pressure69

Degree of protectionIP40

Ambient temperature0, 50

Product weight100

Electrical connectionPlug

Type of mountingWith through-hole, via DIN rail, With accessories

Pneumatic connection, port 1QS-8

Pneumatic connection, port 3Open silencer

Vacuum connectionQS-8

Material connecting threadAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced PA, Reinforced POM

Material silencerWrought aluminium alloy, POM, Polyurethane foam

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 11

Genuine accessories that can be used with the FESTO VN-14-L-T4-PQ3-VQ3-RO2-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NRH-35-2000	DIN mounting rail · Mounting accessories
UOMS-1/4	Silencer extension · Silencer
VN-T4-BP	Mounting plate · Mounting accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
