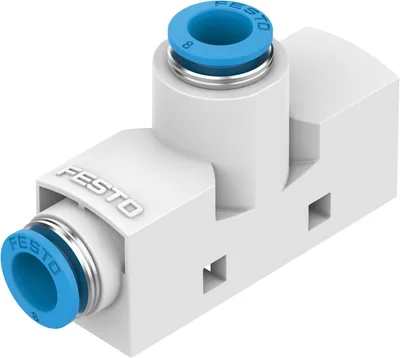

Festo VN-14-L-T4-PQ2-VQ3-RQ3

Vacuum generator. Can be used directly in the work space. Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port). Compact and cost-effective. Maintenance-free operation and reduced noise level through an integrated, open silencer. Variants recommended for production systems for manufacturing lithium-ion batteries

FestoMFR # VN-14-L-T4-PQ2-VQ3-RQ3SKU # CEY-937FC7821C36

Nominal size, Laval nozzle1.4

Grid dimension18

Mounting positionAny

Ejector characteristicHigh suction rate, Standard

DesignT-shape

Symbol00991490

Have questions?Chat on WhatsApp

About This Product

Festo VN-14-L-T4-PQ2-VQ3-RQ3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle1.4

Grid dimension18

Mounting positionAny

Ejector characteristicHigh suction rate, Standard

DesignT-shape

Symbol00991490

Operating pressure for max. suction flow rate8

Operating pressure1, 8

Nominal operating pressure6

Max. suction flow rate against atmosphere90

Air supply time at nominal operating pressure0.25

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 60

Ambient temperature0, 60

Max. tightening torque0.5

Product weight27

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1QS-6

Pneumatic connection, port 3QS-8

Vacuum connectionQS-8

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced POM

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 11

Genuine accessories that can be used with the Festo VN-14-L-T4-PQ2-VQ3-RQ3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
VN-T4-BP-NRH	Mounting plate · Mounting accessories
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
PUN-H-6X1-NT	Plastic tubing · Tubes
NRH-35-2000	DIN mounting rail · Mounting accessories
UC-QS-8H	Silencer · Silencer
