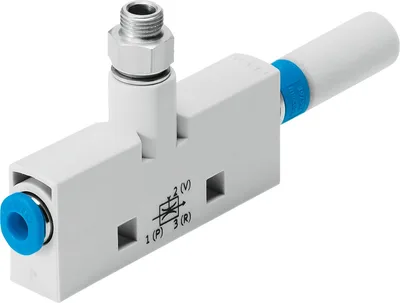

FESTO VN-10-H-T4-PQ2-VA5-RO2

Vacuum generator. Can be used directly in the work space. Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port). Compact and cost-effective. Maintenance-free operation and reduced noise level through an integrated, open silencer. Variants recommended for production systems for manufacturing lithium-ion batteries

FESTOMFR # VN-10-H-T4-PQ2-VA5-RO2SKU # CEY-937FC781EB21

Nominal size, Laval nozzle0.95

Grid dimension18

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Integrated functionOpen silencer

Have questions?Chat on WhatsApp

About This Product

FESTO VN-10-H-T4-PQ2-VA5-RO2

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.95

Grid dimension18

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Integrated functionOpen silencer

DesignT-shape

Symbol00991489

Operating pressure for max. suction flow rate3.1

Operating pressure1, 8

Operating pressure for max. vacuum4.5

Max. vacuum89

Nominal operating pressure6

Max. suction flow rate against atmosphere25

Air supply time at nominal operating pressure1.1

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature0, 60

Sound pressure level at nominal operating pressure71

Ambient temperature0, 60

Max. tightening torque0.5

Product weight42

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1QS-6

Pneumatic connection, port 3Open silencer

Vacuum connectionG1/4

Material connecting threadWrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced POM

Material silencerDie-cast aluminium, POM, Polyurethane foam

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 26

Genuine accessories that can be used with the FESTO VN-10-H-T4-PQ2-VA5-RO2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VN-T4-BP-NRH	Mounting plate · Mounting accessories
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
QSF-1/4-10-B	Push-in fitting · Fittings
ACK-1/4-PK-6	Quick connector · Quick connectors
ACK-1/4-PK-4	Quick connector · Quick connectors
QCK-1/4-PK-6-B	Bulkhead quick connector · Quick connectors
NRH-35-2000	DIN mounting rail · Mounting accessories
QSF-1/4-6-B-100	Push-in fitting · Push-in fittings
QSF-1/4-8-B-50	Push-in fitting · Push-in fittings
QSF-1/4-10-B-50	Push-in fitting · Push-in fittings
QSF-1/4-6-B	Push-in fitting · Push-in fittings
QSF-1/4-8-B	Push-in fitting · Push-in fittings
QSSF-1/4-6-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/4-8-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/4-10-B	Bulkhead push-in fitting · Push-in fittings
QSF-1/4-4-B	Push-in fitting · Push-in fittings
QSF-1/4-12-B	Push-in fitting · Push-in fittings
QSSF-1/4-4-B	Bulkhead push-in fitting · Push-in fittings
UOMS-1/4	Silencer extension · Silencer
