How can I get a price quote for Festo VN-10-H-T3-PQ2-VQ2-RQ2?

You can request a fast quote for Festo VN-10-H-T3-PQ2-VQ2-RQ2 from Yılsa Engineering. Reference part number CEY-937FC7821C5B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VN-10-H-T3-PQ2-VQ2-RQ2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VN-10-H-T3-PQ2-VQ2-RQ2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VN-10-H-T3-PQ2-VQ2-RQ2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

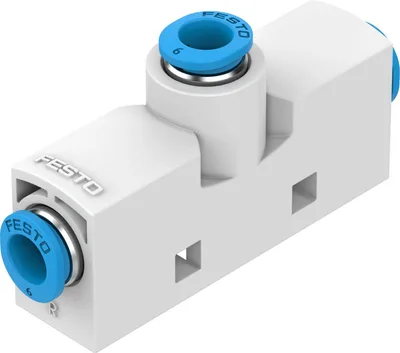

Festo VN-10-H-T3-PQ2-VQ2-RQ2

Vacuum generator. Can be used directly in the work space. Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port). Compact and cost-effective. Maintenance-free operation and reduced noise level through an integrated, open silencer. Variants recommended for production systems for manufacturing lithium-ion batteries

FestoMFR # VN-10-H-T3-PQ2-VQ2-RQ2SKU # CEY-937FC7821C5B

Nominal size, Laval nozzle0.95

Grid dimension14

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

DesignT-shape

Symbol00991490

Have questions?Chat on WhatsApp

About This Product

Festo VN-10-H-T3-PQ2-VQ2-RQ2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.95

Grid dimension14

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

DesignT-shape

Symbol00991490

Operating pressure for max. suction flow rate3.1

Operating pressure1, 8

Operating pressure for max. vacuum4.5

Max. vacuum89

Nominal operating pressure6

Max. suction flow rate against atmosphere25

Air supply time at nominal operating pressure1.1

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 60

Ambient temperature0, 60

Max. tightening torque0.5

Product weight22

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1QS-6

Pneumatic connection, port 3QS-6

Vacuum connectionQS-6

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced POM

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 7

Genuine accessories that can be used with the Festo VN-10-H-T3-PQ2-VQ2-RQ2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-TBL	Plastic tubing · Tubes
VN-T3-BP-NRH	Mounting plate · Mounting accessories
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
NRH-35-2000	DIN mounting rail · Mounting accessories
UC-QS-6H	Silencer · Silencer
