How can I get a price quote for FESTO VN-05-H-T4-PQ2-VQ2-O2-P?

You can request a fast quote for FESTO VN-05-H-T4-PQ2-VQ2-O2-P from Yılsa Engineering. Reference part number CEY-937FC78202BE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VN-05-H-T4-PQ2-VQ2-O2-P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VN-05-H-T4-PQ2-VQ2-O2-P genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VN-05-H-T4-PQ2-VQ2-O2-P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

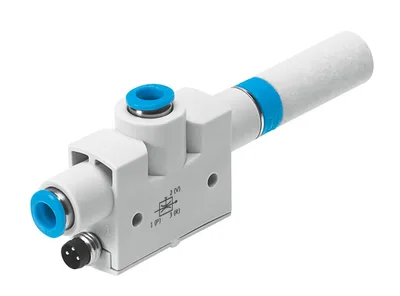

FESTO VN-05-H-T4-PQ2-VQ2-O2-P

Vacuum generator. Can be used directly in the work space. Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port). Compact and cost-effective. Maintenance-free operation and reduced noise level through an integrated, open silencer. Variants recommended for production systems for manufacturing lithium-ion batteries

FESTOMFR # VN-05-H-T4-PQ2-VQ2-O2-PSKU # CEY-937FC78202BE

Nominal size, Laval nozzle0.45

Grid dimension16

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Integrated functionPressure sensor, Open silencer

Have questions?Chat on WhatsApp

About This Product

FESTO VN-05-H-T4-PQ2-VQ2-O2-P

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.45

Grid dimension16

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Integrated functionPressure sensor, Open silencer

DesignT-shape

Short circuit current ratingPulsed

Measured variableRelative pressure

Measuring principlePiezoresistive

Measurement methodrelatively

Switching element functionN/O contact

Switching functionThreshold value comparator, Threshold value with variable hysteresis

Symbol00991917

Reverse polarity protectionFor all electrical connections

Display typeLED

Setting range threshold value-0.1, 0

Setting optionsTeach-in

Switching status indicationLED

Setting range threshold value-1, 0

Setting range threshold value-14.5, 0

Operating pressure for max. suction flow rate0.3

Operating pressure for max. suction flow rate3

Operating pressure for max. suction flow rate43.5

Operating pressure0.1, 0.8

Operating pressure1, 8

Operating pressure14.5, 116

Operating pressure for max. vacuum0.49

Operating pressure for max. vacuum4.9

Operating pressure for max. vacuum71.05

Max. vacuum92

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Max. suction flow rate against atmosphere7.2

Switch-off time4

Switch-on time4

Operational voltage range DC15, 30

Inductive protective circuitAdapted to MZ, MY, ME coils

Max. output current100

Off-state current0.3

Residual ripple10%

Switching outputPNP

Voltage drop1.5

Overload protectionAvailable

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 60

Recommended cleaning/purificationSoapy water

Sound pressure level at nominal operating pressure62

Degree of protectionIP40

Ambient temperature0, 50

Max. tightening torque0.6

Pressure measuring range-0.1, 0

Pressure measuring range-1, 0

Pressure measuring range-14.5, 0

Product weight33

Accuracy in ± % FS1.5

Long-term drift±0.5 % FS max.

Temperature cooefficient of switching point0.05

Electrical connectionM8

Type of mountingWith through-hole

Pneumatic connection, port 1QS-6

Pneumatic connection, port 3Open silencer

Vacuum connectionQS-6

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced POM

Material fibre-opticMakrolon®

Material silencerPackaging unit

Material connector housingChrome-plated and nickel-plated

Material transmitter nozzleWrought aluminium alloy

Material keypadPOM

Material fittingBrass, nickel-plated

Accessories 6

Genuine accessories that can be used with the FESTO VN-05-H-T4-PQ2-VQ2-O2-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
