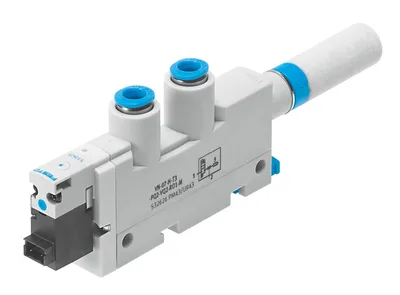

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VN-05-H-T3-PQ2-VQ2-RO1-B

Vacuum generator. Can be used directly in the work space. Low cost. Maintenance-free operation and reduced noise level through an integrated, open silencer. With solenoid valve vacuum on/off

FESTOMFR # VN-05-H-T3-PQ2-VQ2-RO1-BSKU # CEY-937FC7820CB2

Nominal size, Laval nozzle0.45

Grid dimension14

Silencer designOpen

Mounting positionAny

Ejector characteristicStandard, high negative pressure

Manual overrideNon-detenting

Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Can be used directly in the work space. Low cost. Maintenance-free operation and reduced noise level through an integrated, open silencer. With solenoid valve vacuum on/off

FESTO VN-05-H-T3-PQ2-VQ2-RO1-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.45

Grid dimension14

Silencer designOpen

Mounting positionAny

Ejector characteristicStandard, high negative pressure

Manual overrideNon-detenting

Integrated functionEjector pulse valve, pneumatic, On/off valve, electric, Open silencer

DesignT-shape

Symbol00991944

Valve function2/2

Operating pressure for max. suction flow rate3

Operating pressure2, 8

Operating pressure for max. vacuum4.9

Max. vacuum92

Nominal operating pressure6

Max. suction flow rate against atmosphere7.2

Air supply time at nominal operating pressure3.9

Operational voltage range DC21.6, 26.4

Electrical power consumption1.2

Duty cycle100%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Sound pressure level at nominal operating pressure56

Degree of protectionIP40

Ambient temperature0, 50

Product weight62

Electrical connectionPlug

Type of mountingWith through-hole, via DIN rail, With accessories

Pneumatic connection, port 1QS-6

Pneumatic connection, port 3Open silencer

Vacuum connectionQS-6

Material connecting threadAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced PA, Reinforced POM

Material silencerPackaging unit

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 9

Genuine accessories that can be used with the FESTO VN-05-H-T3-PQ2-VQ2-RO1-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NRH-35-2000	DIN mounting rail · Mounting accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
