How can I get a price quote for FESTO VMPAL-AP-14?

You can request a fast quote for FESTO VMPAL-AP-14 from Yılsa Engineering. Reference part number CEY-937FC781D66D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VMPAL-AP-14 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VMPAL-AP-14 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VMPAL-AP-14?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

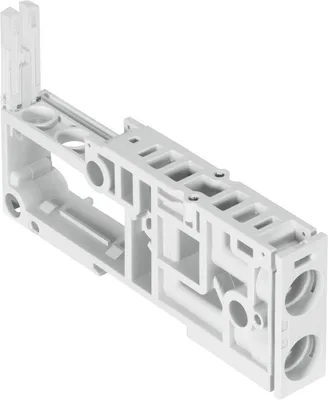

FESTO VMPAL-AP-14

Sub-base

FESTOMFR # VMPAL-AP-14SKU # CEY-937FC781D66D

Width14.9

Length107.3

Grid dimension14.9

Valve size14

Max. number of valve positions1

Flow directionReversible

Have questions?Chat on WhatsApp

About This Product

FESTO VMPAL-AP-14 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VMPAL-AP-14 — price, stock availability and technical specifications.

FESTO VMPAL-AP-14

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Width14.9

Length107.3

Grid dimension14.9

Valve size14

Max. number of valve positions1

Flow directionReversible

Valve terminal structureValve sizes can be mixed

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-5, 50

Product weight32.7

Pneumatic connection, port 2For 14 mm cartridge

Pneumatic connection, port 4For 14 mm cartridge

Note on materialsRoHS compliant

Material sub-baseReinforced PA

Accessories 1

Genuine accessories that can be used with the FESTO VMPAL-AP-14 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
