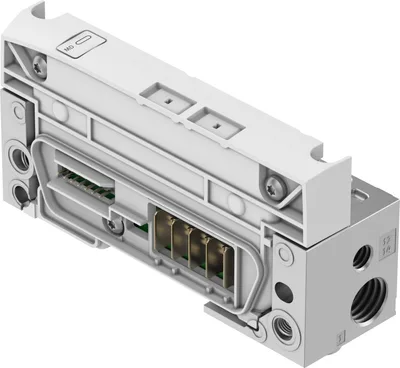

Festo VMPA-AP-EPL-G

Pneumatic interface

FestoMFR # VMPA-AP-EPL-GSKU # YLSDVN6LLAL4EH

Width34.1

Length107.3

Note on vibration resistanceSG2 on wall mounting

Note on shock resistanceSG2 on wall mounting

Valve terminal interfaceType 32, MPA-FB-AP-VI

Reverse polarity protectionYes

Have questions?Chat on WhatsApp

About This Product

Festo VMPA-AP-EPL-G (Pneumatic interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VMPA-AP-EPL-G — price, stock availability and technical specifications.

Festo VMPA-AP-EPL-G

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Width34.1

Length107.3

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG2 on wall mounting

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistanceSG2 on wall mounting

Valve terminal interfaceType 32, MPA-FB-AP-VI

Reverse polarity protectionYes

Note on reverse polarity protectionSelf-protection

Mounting positionAny, on H-rail: horizontal

Diagnostics via LEDDiagnostics per module

Diagnostics per internal communicationCommunication error, Electronics/sensors overvoltage, Electronics/sensors undervoltage

Integrated functionFlat plate silencer, Ducted exhaust air

Pilot air supplyInternal

Module code (hex/dec)0x3052/12370d

Internal cycle time1 ms

Dimensions (W x L x H)34.1 mm x 107.3 mm x 55.1 mm

Fuse protection (short circuit)Additional fuse

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 35 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Pollution degree2

Permissible voltage fluctuations for electronics/sensors±25%

Permissible voltage fluctuation of load±25%

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Protection classIII

Overvoltage categoryII

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation height> 2000 m ASL (< 79.5 kPa), Observe ambient temperature derating according to IEC 61131-2:2017

Product weight207

Electrical controlAP interface

Communication interface, protocolAP

Type of mountingVia through-hole for M4 screw

Pilot air port 12/14M7

Pneumatic connection, port 1G1/4

Note on materialsRoHS compliant

Material coverReinforced PBT

Material sealsPolyurethane foam

Material housingDie-cast aluminium

Material screwsGalvanised steel
