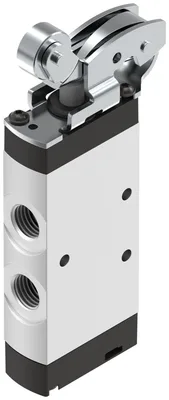

Festo VMEF-R-M52-E-G14

Roller lever valve. Durable thanks to tried-and-tested piston slide and disc seat valve technology. Robust metal housing. Outstanding pneumatic performance. Attractive price. Ergonomic and safe operation. Minimal actuating forces. Modern design. Reverse operation possible

FestoMFR # VMEF-R-M52-E-G14SKU # YLSIQK3ROIFWDF0

Valve function5/2-way, single solenoid

Type of actuationMechanical

Construction width20

pneumatic working portG1/4

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Have questions?Chat on WhatsApp

About This Product

Festo VMEF-R-M52-E-G14

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationMechanical

Construction width20

Standard nominal flow rate (standardised to DIN 1343)1200

pneumatic working portG1/4

Operating pressure-0.095, 1

Operating pressure-0.95, 10

DesignPiston gate valve, Roller lever

Type of resetPneumatic spring

Max. stroke limit (hard)11.6

Nominal size7

Instructions on useRisk of pinching

Sealing principleSoft

Mounting positionAny

Type of pilotingDirect

Flow directionReversible

Symbol00992201

lapOverlap

Max. actuating speed with lateral actuation1.4

Max. switching frequency3

Cam angle30

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Note on ambient temperatureInfluence of heat on wear

Actuating force38

Product weight272

Type of mountingWith through-hole

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4

Pneumatic connection, port 4G1/4

Pneumatic connection, port 5G1/4

Note on materialsRoHS compliant

Material mounting adaptorGalvanised steel

Material coverReinforced PA

Material sealsNBR

Material housingAnodised wrought aluminium alloy

Accessories 21

Genuine accessories that can be used with the Festo VMEF-R-M52-E-G14 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-10X1,5-SW	Plastic tubing · Tubes
QSLL-G1/4-10	Push-in L-fitting, long · Fittings
U-1/4	Silencer · Silencer
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
U-1/4-20	Silencer · Silencer
AMTE-M-LH-G14	Silencer · Silencer
VAOM-R4-20-D1-52	Roller lever · General accessories
QS-G1/4-10	Push-in fitting · Fittings
QS-G1/4-10-I	Push-in fitting · Fittings
PUN-H-10X1,5-NT	Plastic tubing · Tubes
QSL-G1/4-10	Push-in L-fitting · Fittings
PUN-H-10X1,5-BL	Plastic tubing · Tubes
U-1/4-B	Silencer · Silencer
QSL-G1/4-8-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-10-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-12-20	Push-in L-fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QSL-G1/4-8	Push-in L-fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QSL-G1/4-12	Push-in L-fitting · Push-in fittings
VAME-R4-20-PA	Mounting kit · Mounting accessories
