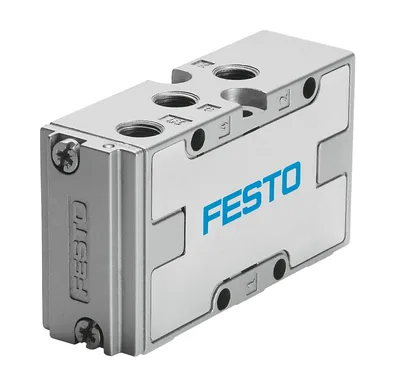

FESTO VL-5-1/4-B-EX
Pneumatic valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)
Valve function5/2-way, single solenoid
Type of actuationPneumatic
Construction width32
pneumatic working portG1/4
Operating pressure0, 1
Operating pressure0, 10
About This Product
Pneumatic valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)
FESTO VL-5-1/4-B-EX
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/2-way, single solenoid
Type of actuationPneumatic
Construction width32
Standard nominal flow rate (standardised to DIN 1343)1300
pneumatic working portG1/4
Operating pressure0, 1
Operating pressure0, 10
DesignPoppet seat
Type of resetMechanical spring
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T4 Gb
Explosion ignition protection type for dustEx h IIIC T130°C Db
Explosion ambient temperature-10°C <= Ta <= +60°C
Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)
Nominal size7
Grid dimension33
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNone
Type of pilotingDirect
Pilot air supplyExternal
Flow directionNon-reversible
Symbol00991001
lapUnderlap
Pilot pressure0.15, 1
Pilot pressure1.5, 10
b value0.29
C value5.5
Max. switching frequency3
Switching time off12
Switching time on2
Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-40, 60
Media temperature-10, 60
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10, 60
Product weight240
Type of mountingWith through-hole
Pilot air port 14G1/8
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsNBR, PU
Material housingDie-cast aluminium
